How To Proceed With Troubleshooting (from 12/2010)

PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM (w/o Navigation System): HOW TO PROCEED WITH TROUBLESHOOTING

HINT
Use the following procedure to troubleshoot the rear view monitor system.

1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. CUSTOMER PROBLEM ANALYSIS

NEXT -- Continue to next step.

3. INSPECT BATTERY VOLTAGE

Standard Voltage:

11 to 14 V

If the voltage is below 11 V, recharge or replace the battery before proceeding to the next step.

NEXT -- Continue to next step.

4. PROBLEM SYMPTOM CONFIRMATION

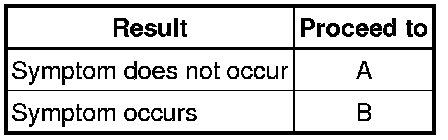

Result





B -- Go to step 6
A -- Continue to next step.

5. SYMPTOM SIMULATION

NEXT -- Continue to next step.

6. PROBLEM SYMPTOMS TABLE

(a) Refer to Problem Symptoms Table Problem Symptoms Table (from 12/2010).

Result





B -- Go to step 8
A -- Continue to next step.

7. PERFORM TROUBLESHOOTING BASED ON MALFUNCTION SYMPTOM

(a) Refer to Terminals of ECU Rear View Monitor System (w/o Navigation System).

NEXT -- Continue to next step.

8. ADJUST, REPAIR OR REPLACE

NEXT -- Continue to next step.

9. CONFIRMATION TEST

NEXT -- END
