How To Proceed With Troubleshooting (from 12/2010)

PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM (w/ Navigation System): HOW TO PROCEED WITH TROUBLESHOOTING

HINT
Use the following procedure to troubleshoot the rear view monitor system.

1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. CUSTOMER PROBLEM ANALYSIS

NEXT -- Continue to next step.

3. INSPECT BATTERY VOLTAGE

Standard Voltage:

11 to 14 V

If the voltage is below 11 V, recharge or replace the battery before proceeding to the next step.

NEXT -- Continue to next step.

4. PROBLEM SYMPTOM CONFIRMATION

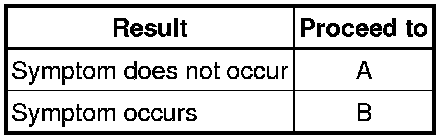

Result





B -- Go to step 6
A -- Continue to next step.

5. SYMPTOM SIMULATION

NEXT -- Continue to next step.

6. CHECK DTC FOR NAVIGATION SYSTEM

(a) Check the DTCs for Navigation System DTC Check / Clear (from 12/2010).

Result





B -- GO TO DIAGNOSTIC TROUBLE CODE CHART FOR NAVIGATION SYSTEM Diagnostic Trouble Code Chart (from 12/2010)
A -- Continue to next step.

7. CHECK IF SAME SYMPTOM APPEARS IN NAVIGATION SYSTEM

(a) Refer to the Navigation System Problem Symptoms Table (from 12/2010).

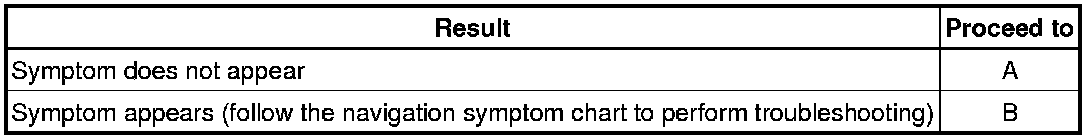

Result





B -- GO TO NAVIGATION SYSTEM (FOLLOW NAVIGATION SYMPTOM CHART TO PERFORM TROUBLESHOOTING)
A -- Continue to next step.

8. PROBLEM SYMPTOMS TABLE

(a) Refer to Problem Symptoms Table Problem Symptoms Table (from 12/2010).

Result





B -- Go to step 10
A -- Continue to next step.

9. PERFORM TROUBLESHOOTING BASED ON MALFUNCTION SYMPTOM

(a) Refer to Terminals of ECU Terminals of ECU (from 12/2010).

NEXT -- Continue to next step.

10. ADJUST, REPAIR OR REPLACE

NEXT -- Continue to next step.

11. CONFIRMATION TEST

NEXT -- END
