ECU Power Source Circuit

THEFT DETERRENT: THEFT DETERRENT SYSTEM: ECU Power Source Circuit
- ECU Power Source Circuit

DESCRIPTION

This circuit provides power for multiplex network body ECU operation.

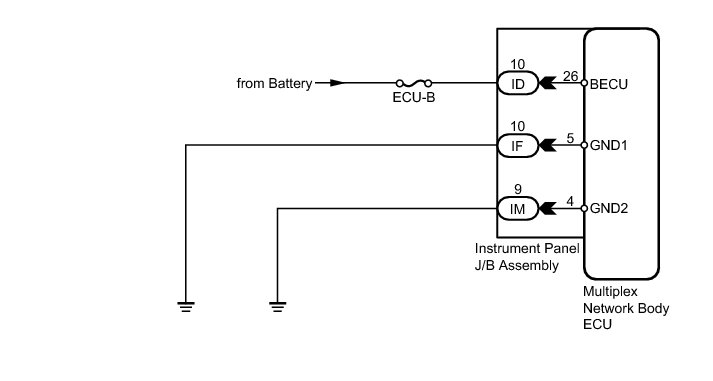

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT FUSE (ECU-B)

(a) Remove the ECU-B fuse from the engine room R/B and J/B.

(b) Check the resistance.

Standard resistance:

Below 1 Ohms

NG -- REPLACE FUSE
OK -- Continue to next step.

2. INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY (MULTIPLEX NETWORK BODY ECU) (POWER SOURCE)

(a) Disconnect the ID J/B connector.





(b) Check the voltage between the wire harness side connector and the body ground.

Standard voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. CHECK WIRE HARNESS (INSTRUMENT PANEL J/B ASSEMBLY - BODY GROUND)

(a) Disconnect the IF and IM J/B connectors.

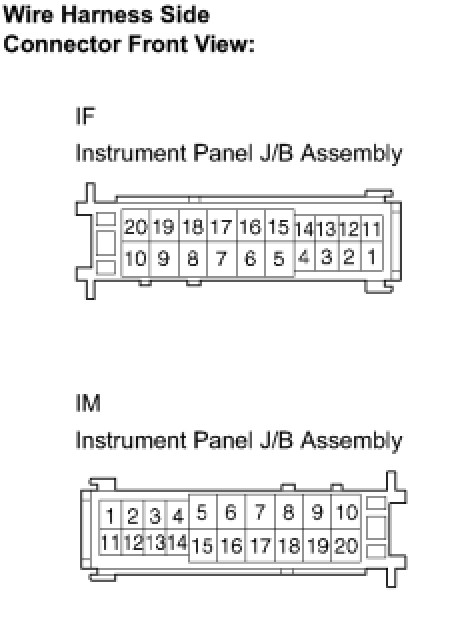

(b) Check the resistance between the wire harness side connector and the body ground.

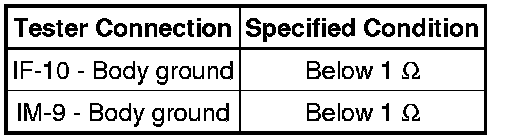

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
