ECU Power Source Circuit

ENGINE IMMOBILISER: ENGINE IMMOBILISER SYSTEM: ECU Power Source Circuit
- ECU Power Source Circuit

DESCRIPTION

This circuit provides power to operate the transponder key ECU assembly.

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT TRANSPONDER KEY ECU ASSEMBLY

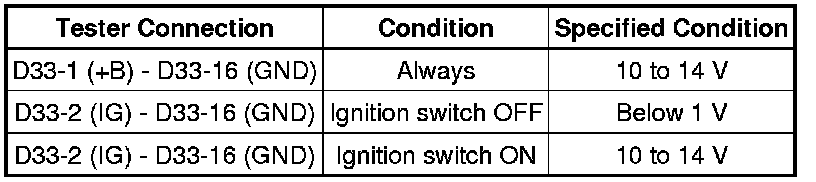

(a) Measure the voltage according to the value(s) in the table below.





Voltage:





NG -- CHECK HARNESS AND CONNECTOR (GROUND CIRCUIT)

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

2. CHECK HARNESS AND CONNECTOR (GROUND CIRCUIT)

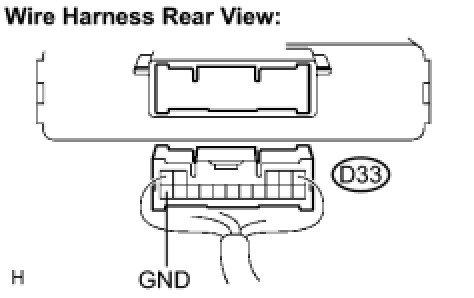

(a) Disconnect the D33 ECU connector.





(b) Measure the resistance according to the value(s) in the table below.

Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
