Customize Parameters

DOOR LOCK: SMART KEY SYSTEM: CUSTOMIZE PARAMETERS

HINT
The following items can be customized.

NOTICE:
* When the customer requests a change in a function, first make sure that customization of the function(s) is possible.
* Be sure to record the current settings before customizing.
* When troubleshooting a function, first make sure that the function is not set to OFF.

1. Using Techstream

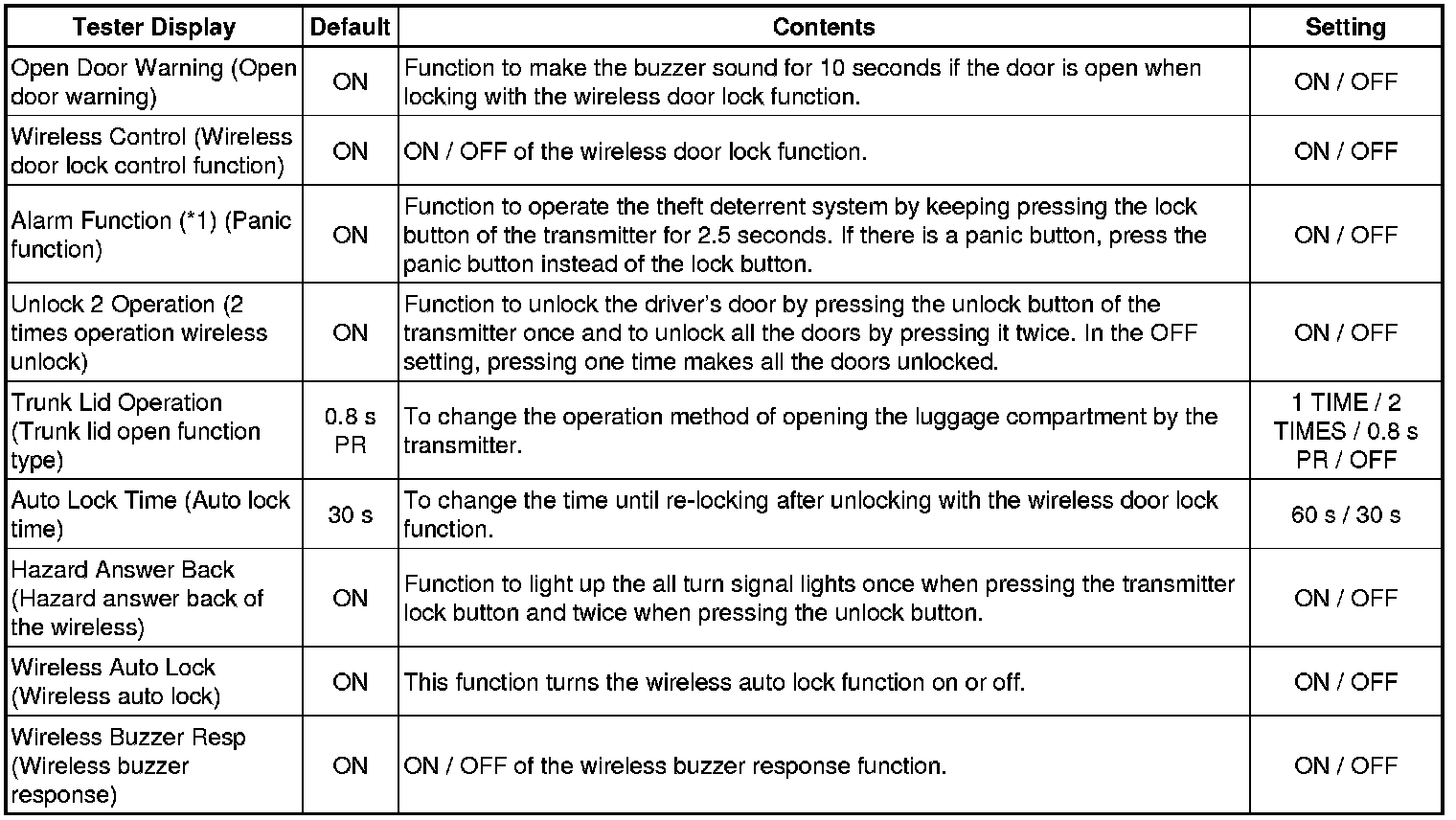

Wireless Door Lock





*1: w/ Theft deterrent system

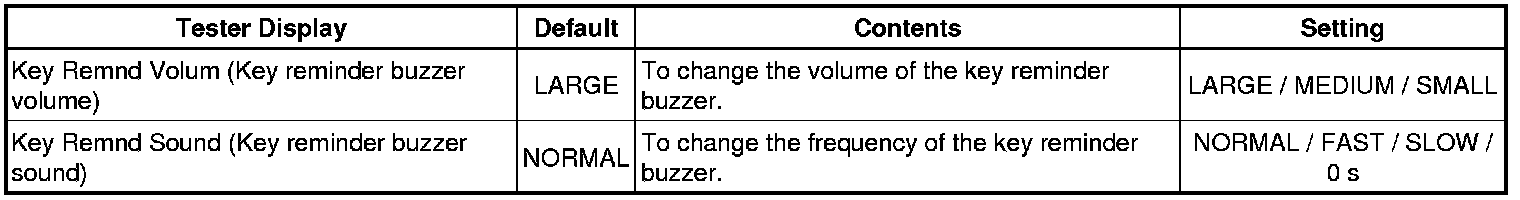

Warning (COMBINATION METER)





Smart





2. Entry Unlock Mode Switching

(a) Check that the power source mode is OFF and the LED on the key does not blink. Press the LOCK button and one of the other buttons on the key at the same time for approximately 5 seconds while the key is in the actuation area.

(b) Certification ECU receives this signal from the tuner and switches the entry unlock mode.

(c) The certification ECU sounds the buzzer of the wireless door lock buzzer and combination meter to inform the user that the mode has been switched.





HINT
* The function only switches the entry unlock of the smart key system. It does not switch the unlocking of the wireless door lock remote control.
* The entry unlock mode cannot be changed for 5 seconds after the previous change.

3. Key Cancel

Key cancel is operated when certain operations are performed with the vehicle in the following conditions.

* A function that allows you to lock / unlock the doors and open the luggage compartment by simply carrying a key.

* A function that causes the vehicle to beep if keys are left inside the vehicle or luggage compartment and a door is closed.

* A function that recalls the position of the driver's seat and side rear view mirrors.

(a) The operation procedures are as follows:

(1) Unlock the driver side door once with the UNLOCK button of the key.

(2) Open the driver door within 5 seconds.

(3) Unlock the driver side door twice with the UNLOCK button of the key within 5 seconds.

(4) Close and open the driver door twice within 30 seconds.

(Driver Door: Close -> Open -> Close -> Open)

(5) Unlock the driver side door twice with the UNLOCK button of the key within 5 seconds.

(6) Close and open the driver door within 30 seconds.

(Driver Door: Close -> Open)

(7) Close the driver door within 5 seconds.

When key cancel is activated, the wireless door lock buzzer sounds once.

To return to the original condition, perform the procedures again. When key cancel is returned, the wireless door lock buzzer sounds twice.
