U0100 - Lost Communication with ECM / PCM "A"

DESCRIPTION

The engine control unit intercommunicates with the TCM with the Controller Area Network (CAN).

If there is a problem in this intercommunication, the TCM sets a DTC.





MONITOR STRATEGY

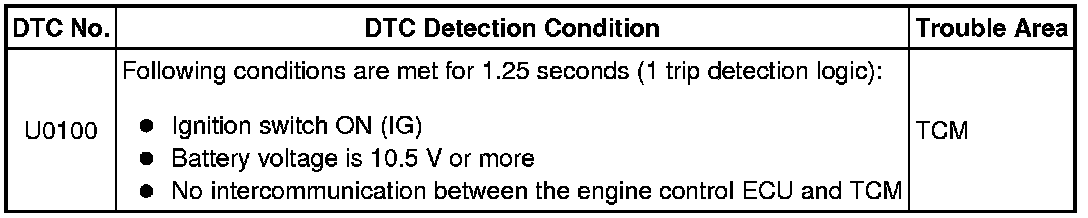

TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Perform the universal trip to clear permanent DTCs DTC Check / Clear (to 12/2010).

HINT
* Refer to inspection procedure for CAN communication system.
* If the CAN communication malfunctions, the TCM cannot receive the current data from the ECM. In this case, the freeze frame data output from the TCM has not been updated, so the data will not be useful for the inspection. However, reading the Data List as the first step in troubleshooting is effective to find malfunctions.
* The malfunction area can be checked using the BUS CHECK function on Techstream Reading and Clearing Diagnostic Trouble Codes.

PROCEDURE

1. CHECK ECU TERMINAL VOLTAGE (+B AND E1 TERMINALS)

(a) Disconnect the TCM connector.





(b) Turn the ignition switch on (IG).

(c) Measure the voltage of the TCM connectors.

Standard voltage:





(d) Turn the ignition switch off.

(e) Measure the resistance of the TCM connector.

:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (TCM - ECM)

(a) Disconnect the TCM connector.





(b) Disconnect the ECM connector.

(c) Measure the resistance of the wire harness side connectors.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. CHECK IF DTC OUTPUT RECURS

(a) Connect Techstream to the DLC3.

(b) Clear the DTC.

(c) Replace the TCM.

HINT
Replace the TCM with a TCM from a normally functioning vehicle of the same model.

(d) Start the engine.

(e) Read the DTCs.

Result:





B -- REPLACE TCM Removal (to 12/2010)

A -- REPLACE ECM (for 2GR-FE) Removal (to 12/2010)
