U660E AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: P2716: Pressure Control Solenoid "D" Electrical (Shift Solenoid Valve SLT)

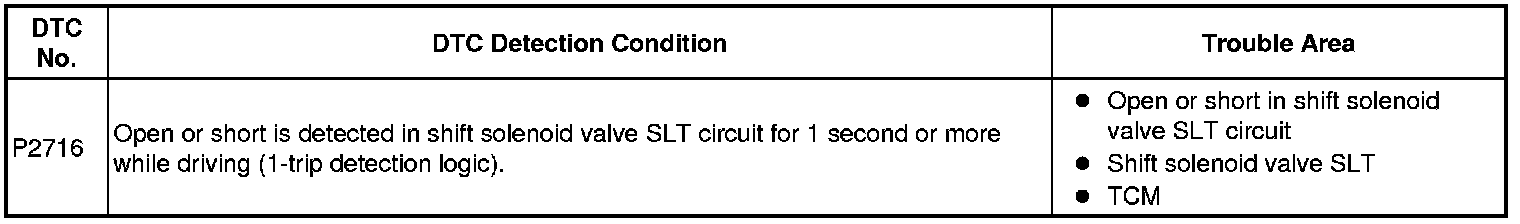

P2716 - Pressure Control Solenoid "D" Electrical (Shift Solenoid Valve SLT)

DESCRIPTION

Refer to DTC P2714 U660E Automatic Transaxle (to 12/2010).

MONITOR DESCRIPTION

When an open or short in the linear solenoid valve (SLT) circuit is detected, the TCM interprets this as a fault. The TCM will turn on the MIL and store the DTC.

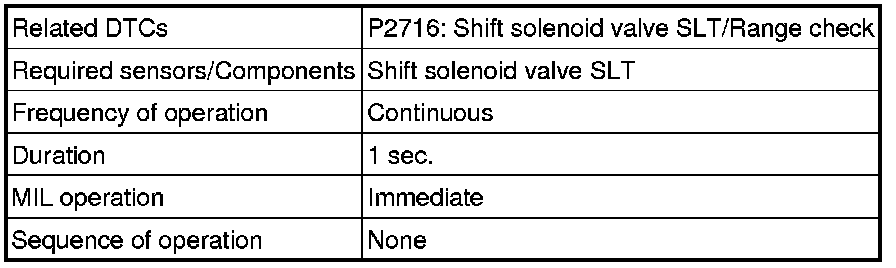

MONITOR STRATEGY

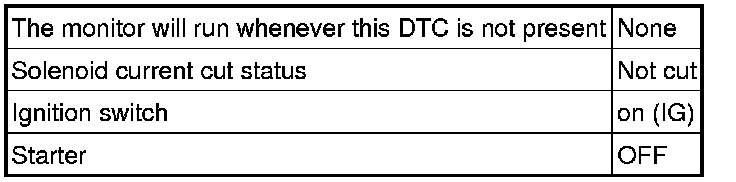

TYPICAL ENABLING CONDITIONS

ALL:

Malfunction (A):

Malfunction (B):

Malfunction (C):

Malfunction (D):

Malfunction (E):

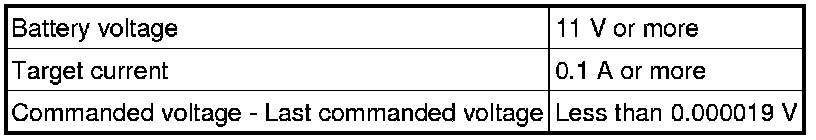

TYPICAL MALFUNCTION THRESHOLDS

Malfunction (A) and (B):

Malfunction (C):

Malfunction (D):

Malfunction (E):

COMPONENT OPERATING RANGE

WIRING DIAGRAM

INSPECTION PROCEDURE

NOTICE:
Perform the universal trip to clear permanent DTCs DTC Check / Clear (to 12/2010).

PROCEDURE

1. INSPECT TRANSMISSION WIRE (SLT)

(a) Remove the TCM from the transaxle.

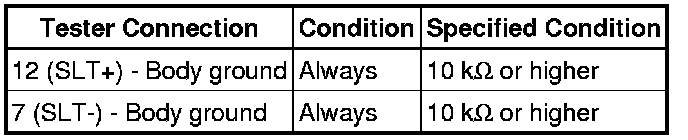

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:

OK -- REPLACE TCM Removal (to 12/2010)
NG -- Continue to next step.

2. INSPECT SHIFT SOLENOID VALVE SLT

(a) Remove the shift solenoid valve SLT.

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:

(c) Connect a positive (+) lead through a 21 W bulb to terminal 2 and a negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the valve.

OK:

The solenoid makes an operating sound.

NG -- REPLACE SHIFT SOLENOID VALVE SLT Disassembly

OK -- REPLACE TRANSMISSION WIRE Removal (to 12/2010)
