2GR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0617: Starter Relay Circuit High
P0617 - Starter Relay Circuit High

DESCRIPTION

While the engine is being cranked, the positive battery voltage is applied to terminal STA of the ECM.

If the ECM detects the Starter Control (STA) signal while the vehicle is being driven, it determines that there is a malfunction in the STA circuit. The ECM then illuminates the MIL and sets the DTC.

This monitor runs when the vehicle is driven at 12.43 mph (20 km/h) for over 20 seconds.

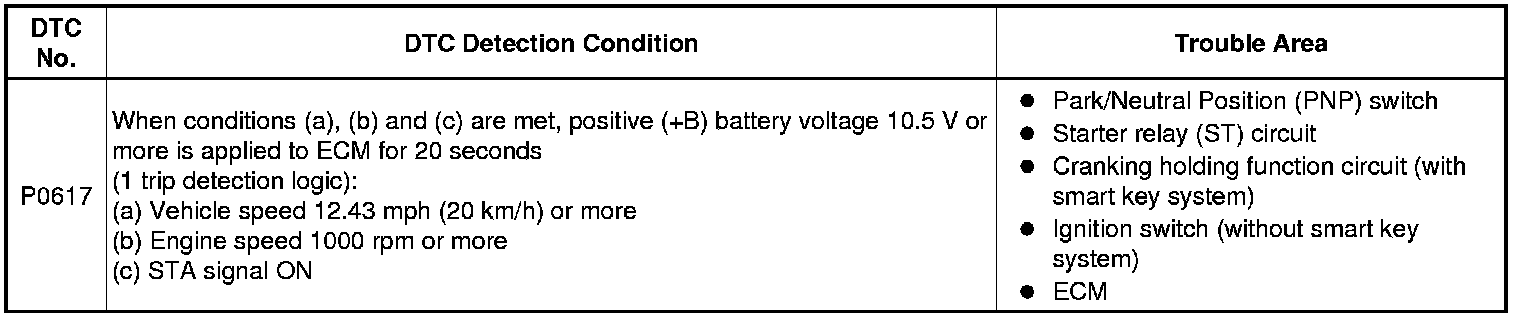

MONITOR STRATEGY

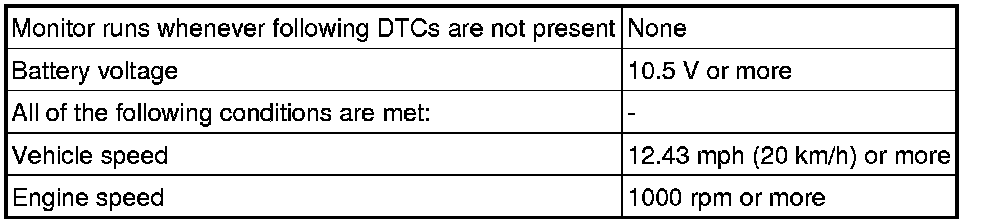

TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS

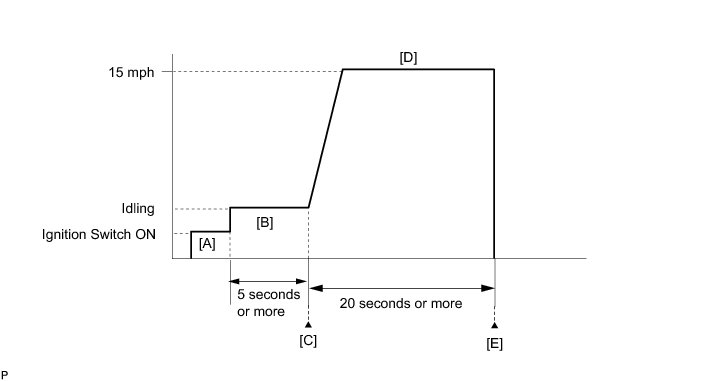

CONFIRMATION DRIVING PATTERN





1. Connect the Techstream to the DLC3.

2. Turn the ignition switch to ON and turn the Techstream on.

3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) DTC Check / Clear (to 12/2010).

4. Turn the ignition switch off and wait for 30 seconds.

5. Turn the ignition switch to ON and turn the Techstream on [A].

6. Idle the engine for 5 minutes or more [B].

7. Enter the following menus: Powertrain / Engine / Trouble Codes.

8. Read the DTCs [C].

9. If a DTC is output, the system is malfunctioning.

HINT
If a DTC is not output, perform the following procedure.

10. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

11. Input the DTC: P0617.

12. Check the DTC judgment result.





CAUTION:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.

HINT
* If the judgment result shows ABNORMAL, the system has a malfunction.
* If the judgment result shows NORMAL, the system is normal.
* If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [D] and [E].

13. Drive the vehicle at 15 mph (24 km/h) or more for 20 seconds or more [D].

14. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

15. Check the judgment result [E].

HINT
* If the judgment result shows ABNORMAL, the system has a malfunction.
* If the judgment result shows NORMAL, the system is normal.

16. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs DTC Check / Clear (to 12/2010).

HINT
* If a permanent DTC is output, the system is malfunctioning.
* If no permanent DTC is output, the system is normal.

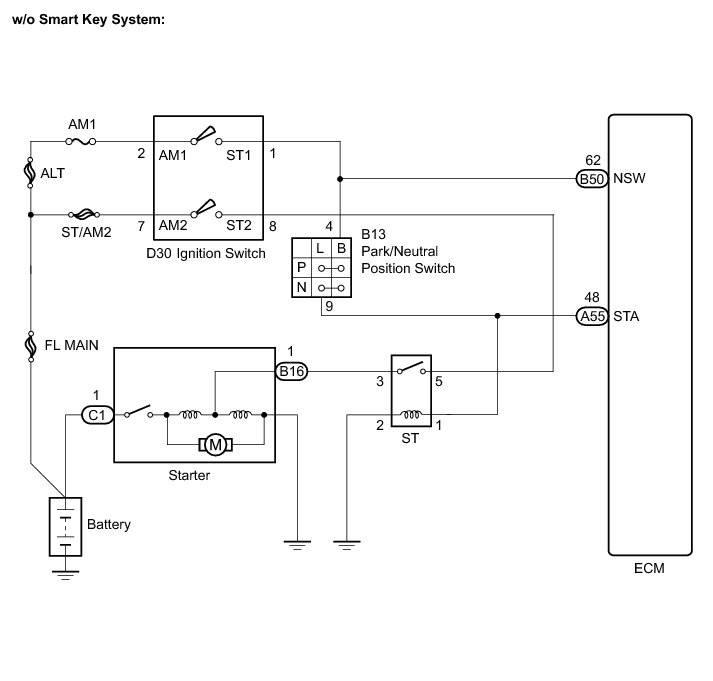

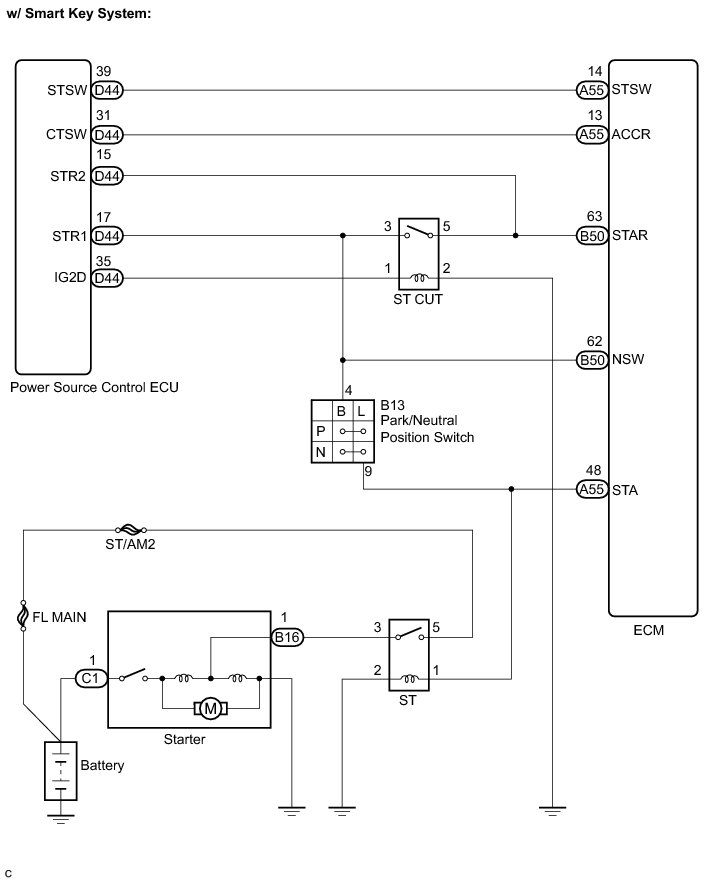

WIRING DIAGRAM









INSPECTION PROCEDURE

NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

HINT
* The following troubleshooting flowchart is based on the premise that the engine is cranked normally. If the engine does not crank, proceed to the problem symptoms table Problem Symptoms Table (to 12/2010).
* Read freeze frame data using Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction Freeze Frame Data.

PROCEDURE

1. READ VALUE USING TECHSTREAM (STARTER SIGNAL)

(a) Connect Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Data List / All Data / Starter Signal.

(e) Check the value displayed on the Techstream when the ignition switch is turned to ON and START.

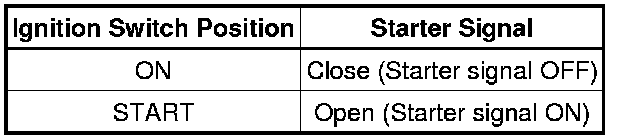

OK:





NG -- INSPECT RELAY (ST RELAY VOLTAGE)
OK -- Continue to next step.

2. READ VALUE USING TECHSTREAM (STARTER SIGNAL)

(a) Connect Techstream to the DLC3.

(b) Turn the ignition switch to ON and turn the Techstream on.

(c) Enter the following menus: Powertrain / Engine / Data List / All Data / Starter Signal.

(d) Check the value displayed on the Techstream when the vehicle is driven at 12.43 mph (20 km/h) or more.

Result:





B -- INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY

A -- CHECK FOR INTERMITTENT PROBLEMS Check for Intermittent Problems

3. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY

(a) Inspect the park/neutral position switch assembly Inspection.

Result:





B -- REPAIR OR REPLACE HARNESS OR CONNECTOR (STARTER SIGNAL CIRCUIT)
A -- Continue to next step.

4. REPLACE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

(a) Replace the park/neutral position switch assembly Removal (to 12/2010).

NEXT -- Continue to next step.

5. CHECK WHETHER DTC OUTPUT RECURS

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Clear the DTCs DTC Check / Clear (to 12/2010).

(e) Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern.

(f) Enter the following menus: Powertrain / Engine / Trouble Codes.

(g) Read the DTCs.

Result:





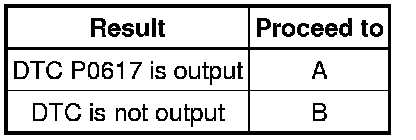

B -- REPAIR COMPLETED
A -- Continue to next step.

6. REPAIR OR REPLACE HARNESS OR CONNECTOR (STARTER SIGNAL CIRCUIT)

NEXT -- Continue to next step.

7. CHECK WHETHER DTC OUTPUT RECURS

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Clear the DTCs DTC Check / Clear (to 12/2010).

(e) Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern.

(f) Enter the following menus: Powertrain / Engine / Trouble Codes.

(g) Read the DTCs.

Result:





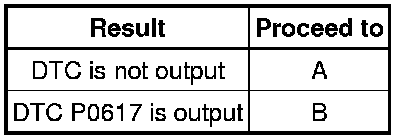

B -- REPLACE ECM Removal (to 12/2010)

A -- REPAIR COMPLETED

8. INSPECT RELAY (ST RELAY VOLTAGE)

(a) Remove the ST relay from the engine room relay block.





(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





(c) Reinstall the ST relay.

NG -- CHECK HARNESS AND CONNECTOR (PARK/NEUTRAL POSITION SWITCH ASSEMBLY - ST RELAY)

OK -- REPAIR OR REPLACE HARNESS OR CONNECTOR (ST RELAY - ECM)

9. CHECK HARNESS AND CONNECTOR (PARK/NEUTRAL POSITION SWITCH ASSEMBLY - ST RELAY)

(a) Disconnect the park/neutral position switch assembly connector.

(b) Remove the ST relay from the engine room relay block.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance (Check for Open):





Standard Resistance (Check for Short):





(d) Reconnect the park/neutral position switch assembly connector.

(e) Reinstall the ST relay.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

10. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY

(a) Inspect the park/neutral position switch assembly Inspection.

Result:





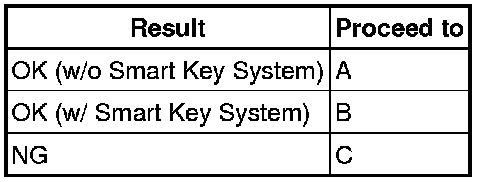

C -- REPLACE PARK/NEUTRAL POSITION SWITCH ASSEMBLY Removal (to 12/2010)

B -- CRANKING HOLDING FUNCTION CIRCUIT Cranking Holding Function Circuit (to 12/2010)
A -- Continue to next step.

11. CHECK HARNESS AND CONNECTOR (IGNITION SWITCH ASSEMBLY - PARK/NEUTRAL POSITION SWITCH)

(a) Disconnect the ignition switch assembly connector.

(b) Disconnect the park/neutral position switch assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance (Check for Open):





Standard Resistance (Check for Short):





(d) Reconnect the ignition switch assembly connector.

(e) Reconnect the park/neutral position switch assembly connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

12. CHECK HARNESS AND CONNECTOR (IGNITION SWITCH ASSEMBLY - ECM)

(a) Disconnect the ignition switch assembly connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance (Check for Open):





Standard Resistance (Check for Short):





(d) Reconnect the ignition switch assembly connector.

(e) Reconnect the ECM connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

13. INSPECT IGNITION SWITCH ASSEMBLY

(a) Inspect the ignition switch assembly Testing and Inspection.

NG -- REPLACE IGNITION SWITCH ASSEMBLY

OK -- REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - IGNITION SWITCH ASSEMBLY)
