Engine Control System - SFI System (to 12/2010)

2GR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0560: System Voltage
P0560 - System Voltage

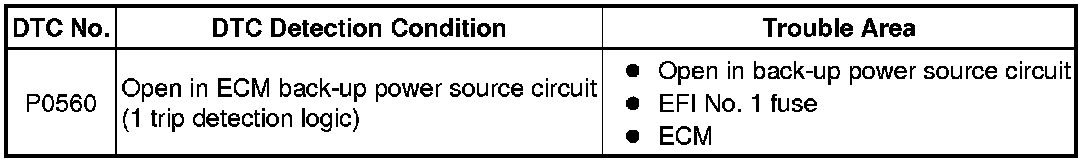

DESCRIPTION

The battery supplies electricity to the ECM even when the ignition switch is off. This power allows the ECM to store data such as DTC history, freeze frame data and fuel trim values. If the battery voltage falls below a minimum level, these memories are cleared and the ECM determines that there is a malfunction in the power supply circuit. When the engine is next started, the ECM illuminates the MIL and sets the DTC.





HINT
If DTC P0560 is set, the ECM does not store other DTCs.

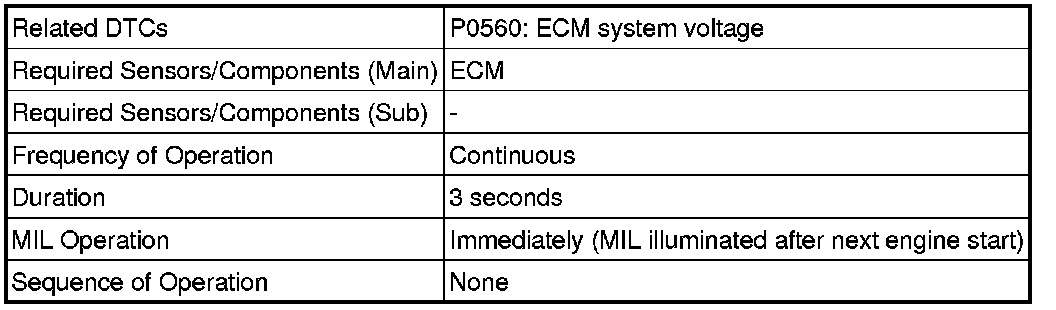

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





CONFIRMATION DRIVING PATTERN





1. Connect the Techstream to the DLC3.

2. Turn the ignition switch to ON and turn the Techstream on.

3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) DTC Check / Clear (to 12/2010).

4. Turn the ignition switch off and wait for 30 seconds.

5. Turn the ignition switch to ON and turn the Techstream on.

6. Wait 5 seconds or more [A].

7. Enter the following menus: Powertrain / Engine / Trouble Codes.

8. Read the DTCs [B].

9. If a DTC is output, the system is malfunctioning.

HINT
If a DTC is not output, perform the following procedure.

10. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

11. Input the DTC: P0560.

12. Check the DTC judgment result.





HINT
* If the judgment result shows ABNORMAL, the system has a malfunction.
* If the judgment result shows NORMAL, the system is normal.
* If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [A] again.

13. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

14. Check the judgment result.

HINT
* If the judgment result shows ABNORMAL, the system has a malfunction.
* If the judgment result shows NORMAL, the system is normal.

15. If the test result is INCOMPLETE or UNKNOWN and no DTC is output, perform a universal trip and check for permanent DTCs DTC Check / Clear (to 12/2010).

HINT
* If a permanent DTC is output, the system is malfunctioning.
* If no permanent DTC is output, the system is normal.

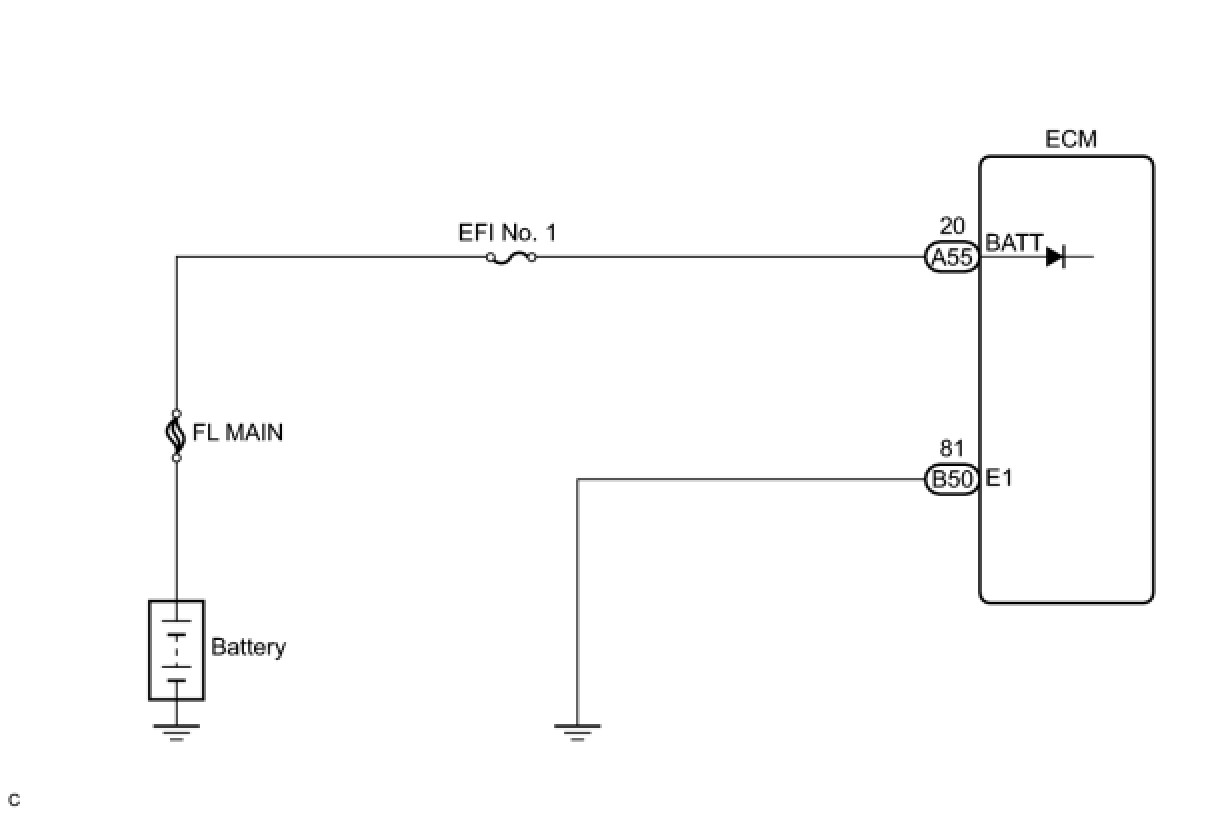

WIRING DIAGRAM





INSPECTION PROCEDURE

HINT
Read freeze frame data using Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction Freeze Frame Data.

PROCEDURE

1. INSPECT FUSE (EFI NO. 1)

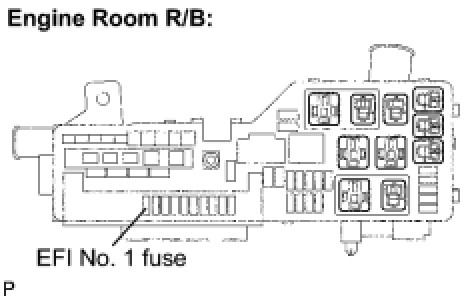

(a) Remove the EFI No. 1 fuse from the engine room R/B.





(b) Measure the EFI No. 1 fuse resistance.

Standard resistance:

Below 1 Ohms

(c) Reinstall the EFI No. 1 fuse.

NG -- REPLACE EFI NO. 1 FUSE
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR

(a) Check the harness and connector between the EFI No. 1 fuse and ECM.

(1) Remove the EFI No. 1 fuse from the engine room R/B.

(2) Disconnect the ECM connector.

(3) Measure the resistance between the terminals.

Standard resistance (Check for open):





Standard resistance (Check for short):





(4) Reconnect the ECM connector.

(5) Reinstall the EFI No. 1 fuse.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. INSPECT BATTERY

(a) Check that the battery voltage.

OK:

Battery voltage: 11 to 14 V

NG -- REPLACE BATTERY
OK -- Continue to next step.

4. CHECK BATTERY TERMINAL

(a) Check that the battery terminals are not loose or corroded.

OK:

Battery terminals are not loose or corroded.

NG -- REPAIR OR REPLACE BATTERY TERMINAL
OK -- Continue to next step.

5. CHECK WHETHER DTC OUTPUT RECURS

(a) Connect Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Clear the DTCs DTC Check / Clear (to 12/2010).

(e) Turn the Techstream off.

(f) Turn the ignition switch to ON and turn the Techstream on.

(g) Wait 5 seconds or more.

(h) Select the following menu items: Powertrain / Engine / Trouble Codes.

(i) Read the DTCs.

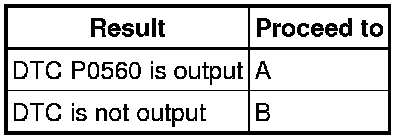

Result:





B -- CHECK FOR INTERMITTENT PROBLEMS Check for Intermittent Problems

A -- REPLACE ECM Removal (to 12/2010)
