ABS Control System Malfunction - Vehicle Stability Control System (from 12/2010)

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: 43: ABS Control System Malfunction
43 - ABS Control System Malfunction

DESCRIPTION

This DTC is output when the VSC system detects a malfunction in the ABS control system.





INSPECTION PROCEDURE

NOTICE:
When replacing the ABS & TRACTION actuator assembly, perform zero point calibration Calibration (from 12/2010).

PROCEDURE

1. CHECK ABS CONTROL SYSTEM

(a) Clear the DTCs DTC Check / Clear (from 12/2010).

(b) Turn the ignition switch on (IG).

(c) Check if the same DTC is recorded DTC Check / Clear (from 12/2010).

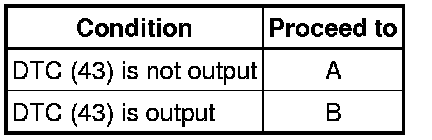

Result:





B -- REPAIR CIRCUIT INDICATED BY OUTPUT DTC Diagnostic Trouble Code Chart (from 12/2010)
A -- Continue to next step.

2. RECONFIRM DTC

(a) Clear the DTCs DTC Check / Clear (from 12/2010).

(b) Turn the ignition switch on (IG).

(c) Check if the same DTC is recorded DTC Check / Clear (from 12/2010).

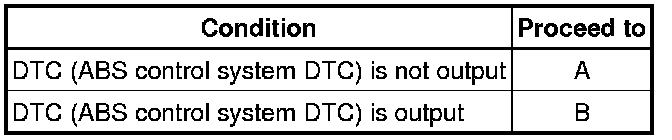

Result:





B -- REPLACE ABS & TRACTION ACTUATOR ASSEMBLY

A -- CHECK FOR INTERMITTENT PROBLEMS Check For Intermittent Problems
