Audio and Visual System (to 12/2010)

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: 01-F2,01-FF: No Response from Diagnosis Memory Request
01-FF - No Response to Diagnosis Request

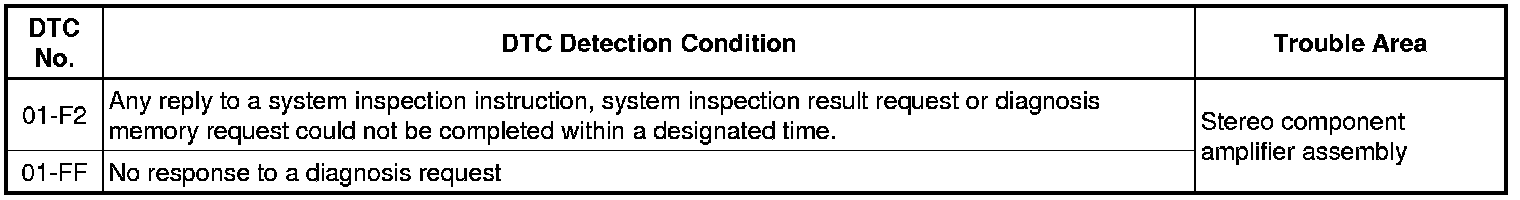

DESCRIPTION





INSPECTION PROCEDURE

HINT
After the inspection is completed, clear the DTCs.

PROCEDURE

1. CLEAR DTC

(a) Clear the DTCs DTC Check / Clear (to 12/2010).

NEXT -- Continue to next step.

2. RECHECK FOR DTC

(a) Recheck for DTCs and check if the same DTC is output again.

OK:

No DTCs are output.

NG -- REPLACE STEREO COMPONENT AMPLIFIER ASSEMBLY Removal (to 12/2010)

OK -- END
