Diagnostic Trouble Code Chart (to 12/2010)

2GR-FE STARTING: SMART KEY SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

1. DTC CHECK

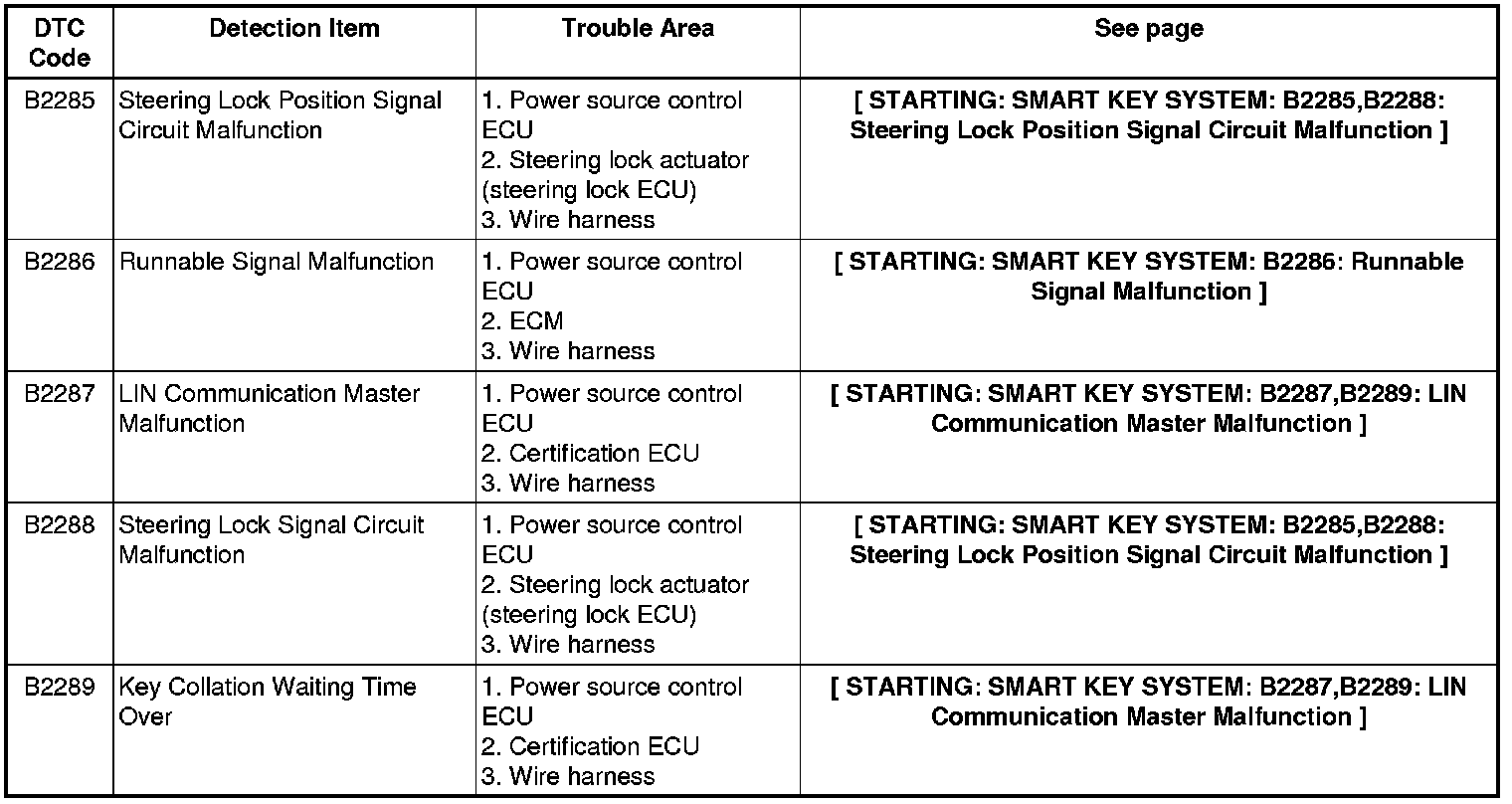

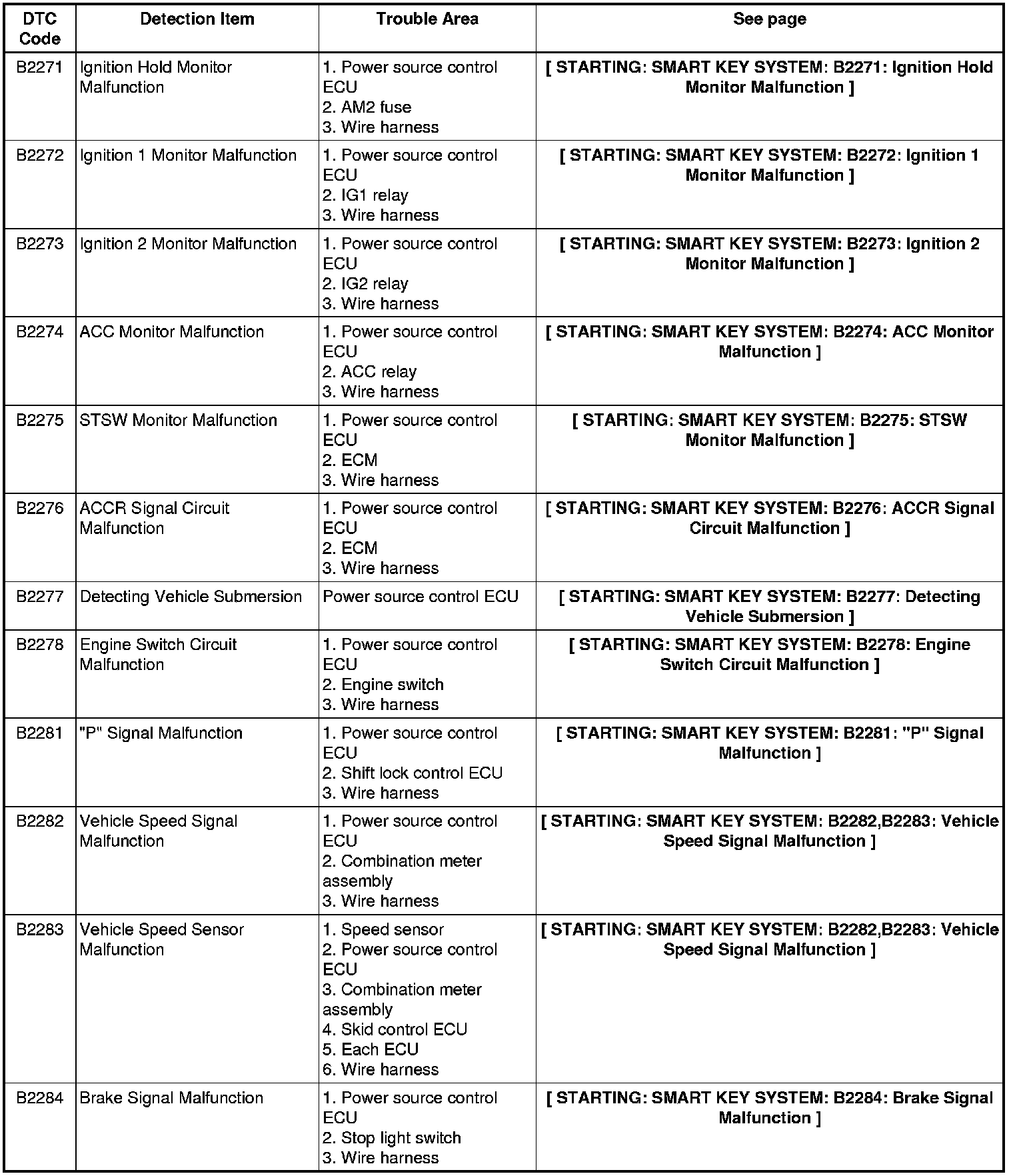

If a malfunction code is displayed during the DTC check, the suspected area listed for that code in the table below, and proceed to the relevant page.

SMART KEY SYSTEM
