A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Navigation System
>>
Diagnostic Trouble Code Chart (to 12/2010)
Diagnostic Trouble Code Chart (to 12/2010)

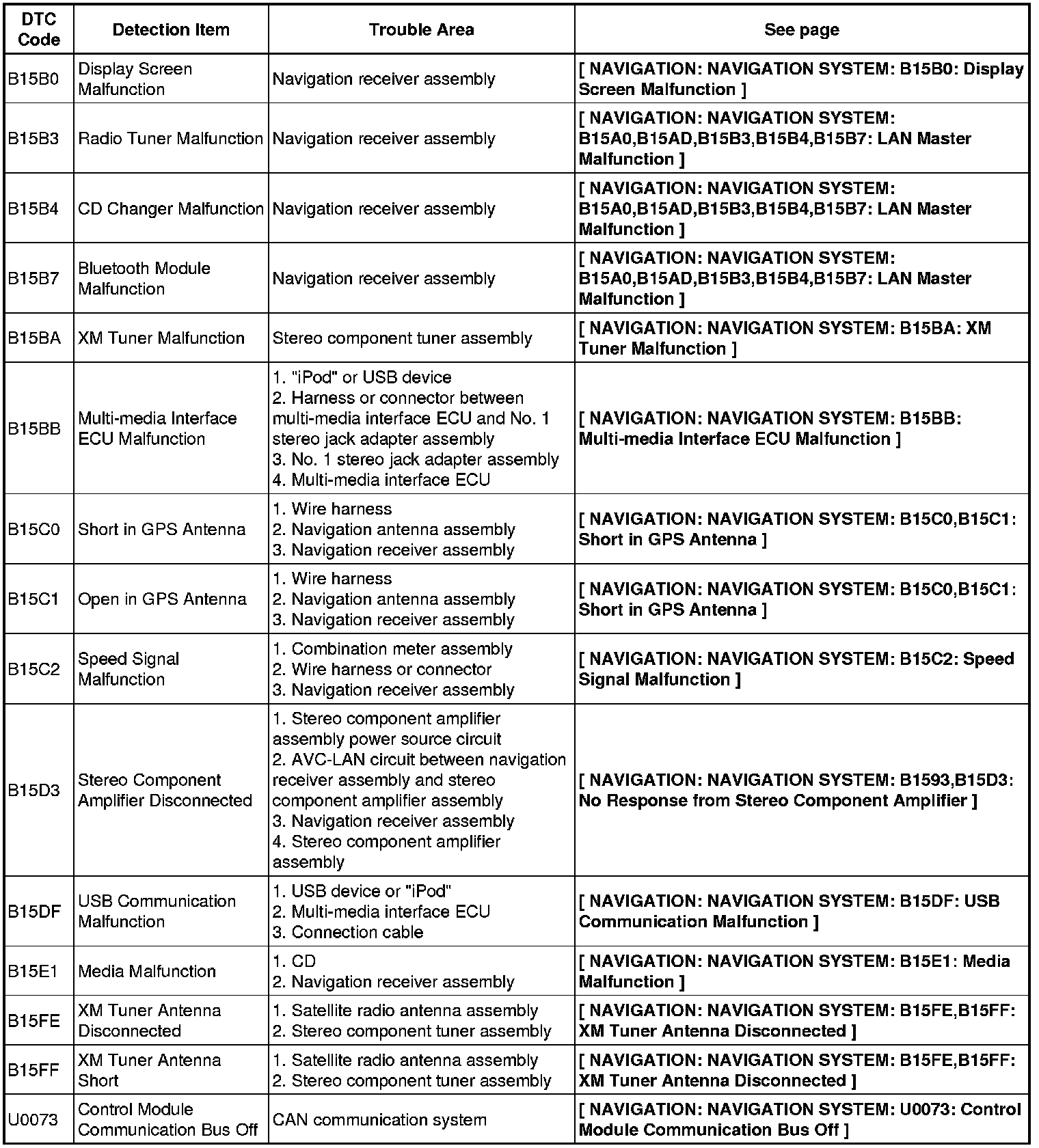

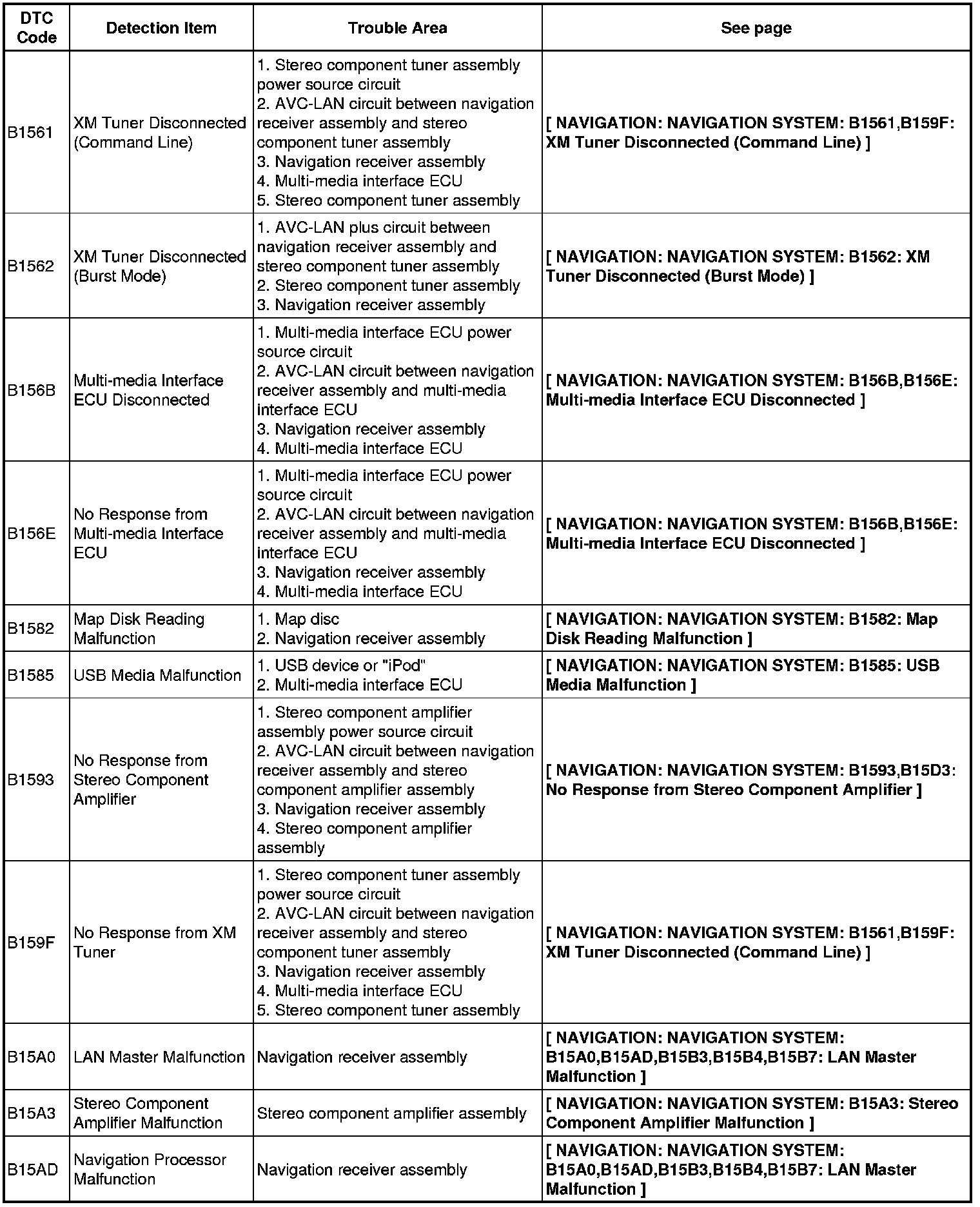

NAVIGATION: NAVIGATION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
Navigation System
