Diagnostic Trouble Code Chart (to 12/2010)

ENGINE IMMOBILISER: ENGINE IMMOBILISER SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

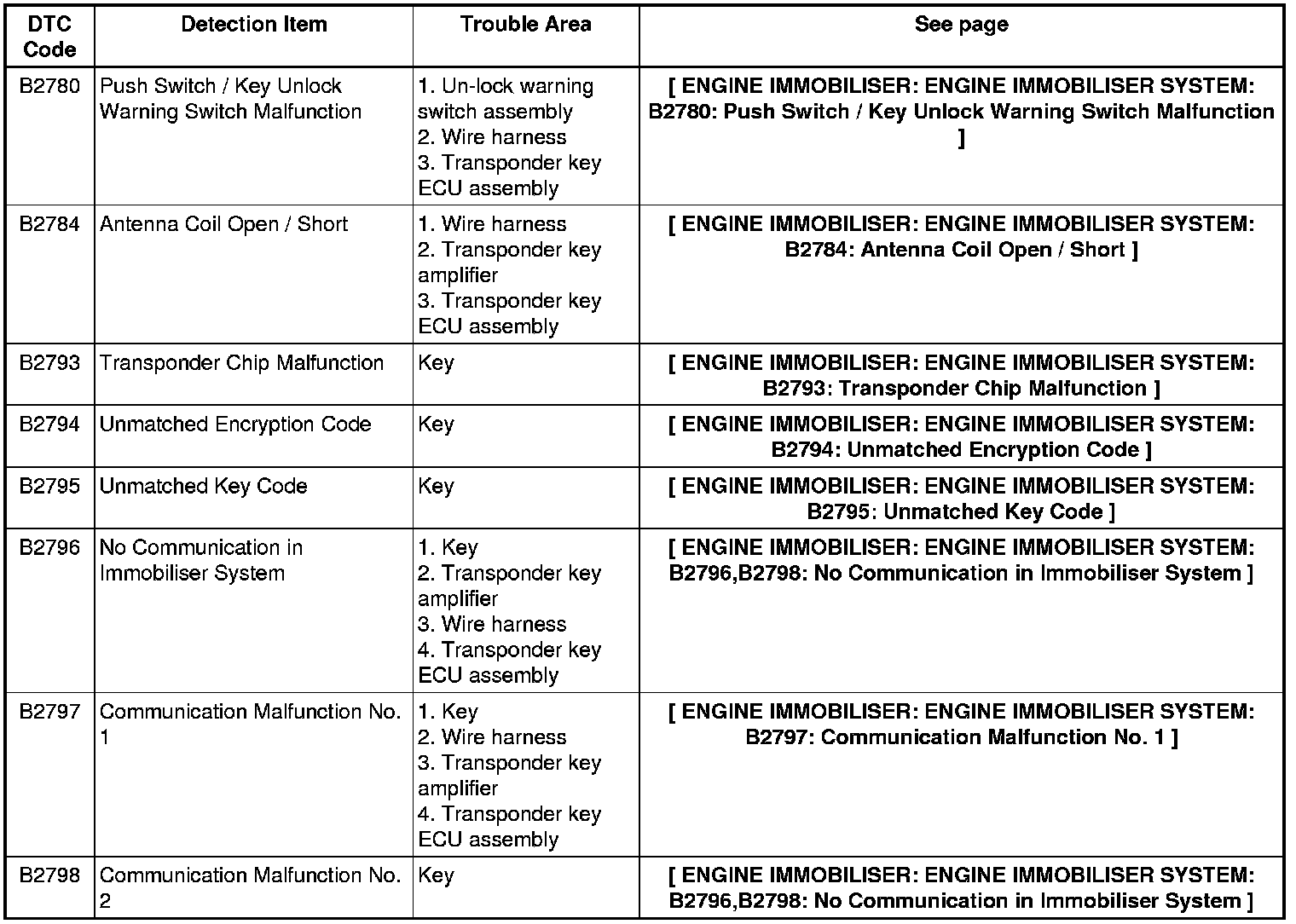

1. TRANSPONDER KEY ECU DIAGNOSTIC TROUBLE CODE CHART

Transponder Key ECU Assembly

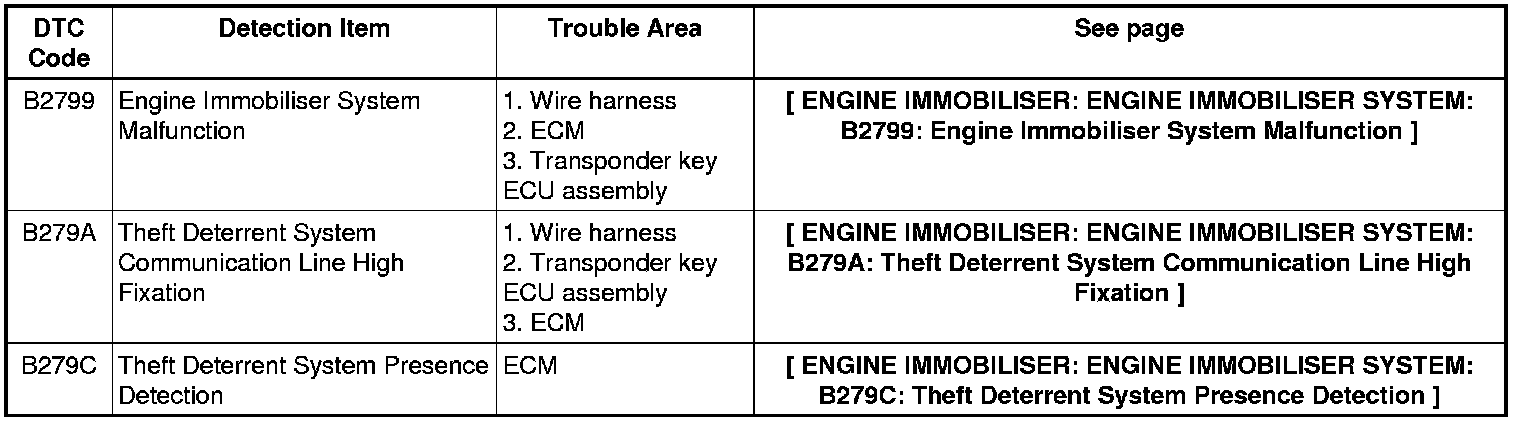

2. ECM DIAGNOSTIC TROUBLE CODE CHART

NOTICE:
The DTCs for the engine immobiliser system are specified above. If other codes are output, check the DTC chart for the SFI system.

ECM
