DOOR LOCK: SMART KEY SYSTEM: B2784: Antenna Coil Open / Short

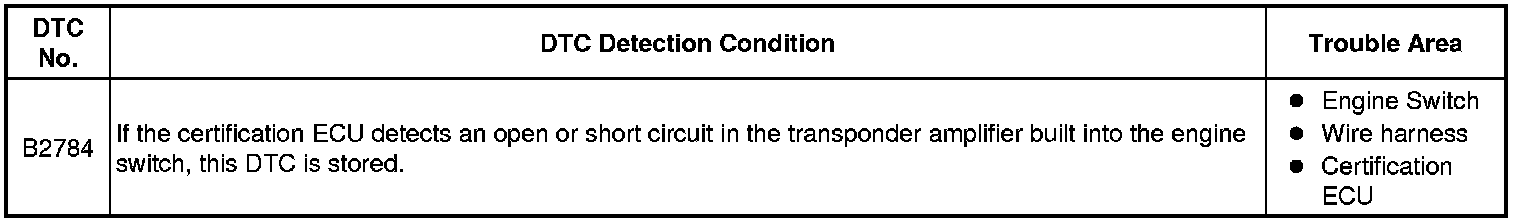

B2784 - Antenna Coil Open / Short

DESCRIPTION

* Operating the engine switch starts the engine or changes the power source status (ACC / IG / OFF / START).

* The engine switch is a momentary type switch which turns on only while the switch is held down. The certification ECU always stores the power source status (OFF / ACC / ON). If the battery has been removed and reinstalled, the power source status before removal is restored.

* The transponder amplifier is built into the engine switch.

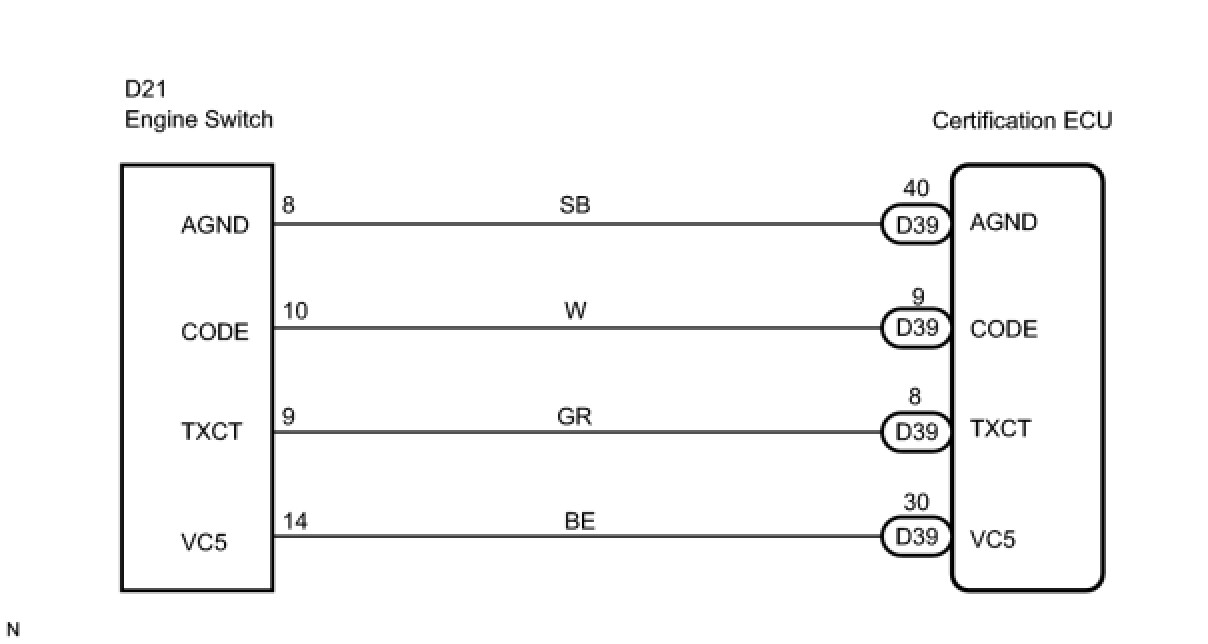

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. RECONFIRM DTC

(a) Clear the DTC and repeat the procedure to re-check it Door Lock - Smart Key System.

OK:

DTC is not output.

OK -- END (SYSTEM IS NORMAL)
NG -- Continue to next step.

2. CHECK WIRE HARNESS (CERTIFICATION ECU - ENGINE SWITCH)

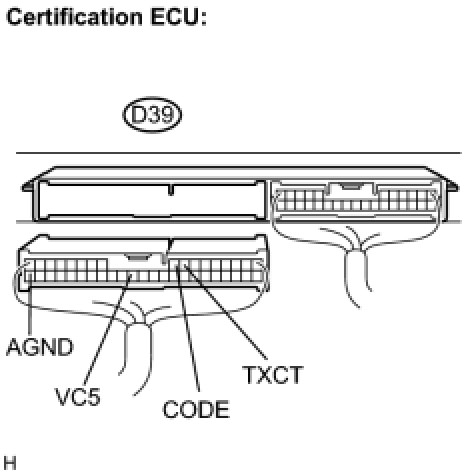

(a) Disconnect the D39 ECU connector.

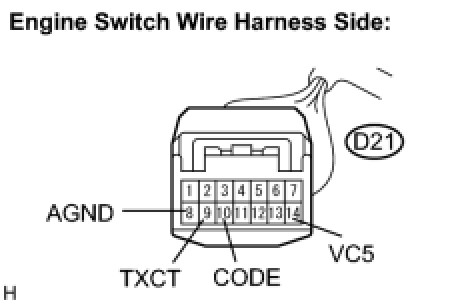

(b) Disconnect the D21 switch connector.

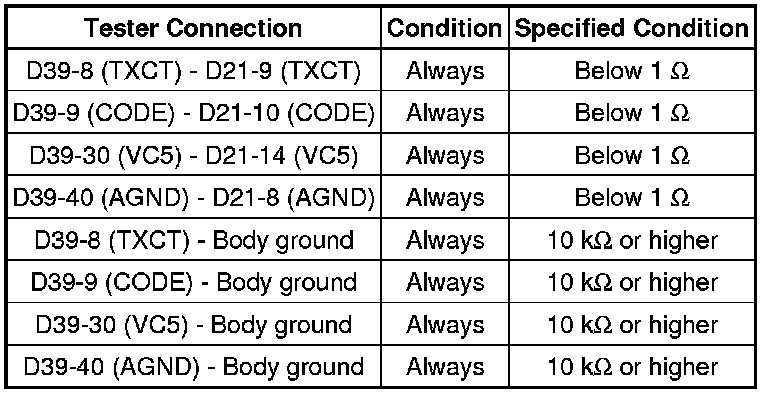

(c) Measure the resistance according to the value(s) in the table below.

Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. REPLACE ENGINE SWITCH (CHECK OPERATION OF ENGINE SWITCH)

(a) Replace the engine switch.

(b) Clear the DTC and repeat the procedure to re-check it Door Lock - Smart Key System.

OK:

DTC is not output.

OK -- END (ENGINE SWITCH IS DEFECTIVE)

NG -- REPLACE CERTIFICATION ECU
