B2780

ENGINE IMMOBILISER: ENGINE IMMOBILISER SYSTEM: B2780: Push Switch / Key Unlock Warning Switch Malfunction
B2780 - Push Switch / Key Unlock Warning Switch Malfunction

DESCRIPTION

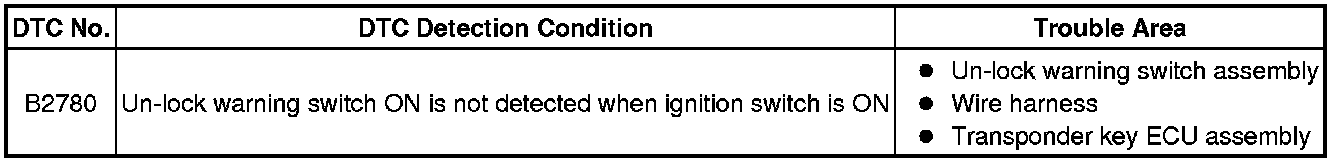

This DTC will be output if the transponder key ECU assembly does not detect that the unlock warning switch is ON even when the ignition switch is ON. Under normal conditions, the unlock warning switch assembly is ON when the ignition switch is ON.

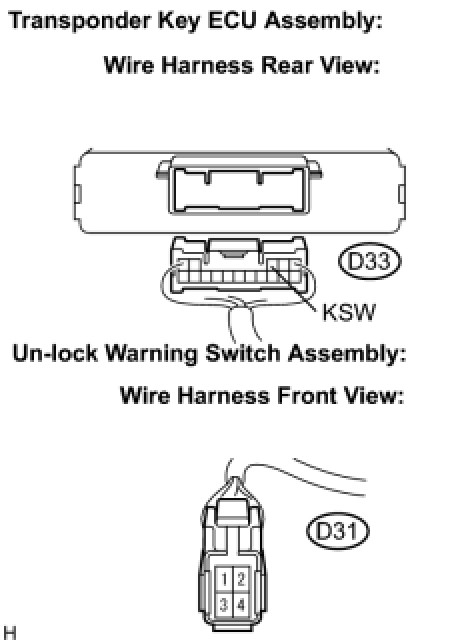

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. READ VALUE USING TECHSTREAM

(a) Connect Techstream to the DLC3.

(b) Turn the ignition switch ON.

(c) Turn the tester on.

(d) Enter the following menus: Body Electrical / Immobiliser / Data List.

(e) Read the Data List according to the display on the tester.

Immobiliser:





OK:

"ON" (Key is in ignition key cylinder) appears on the screen.

NG -- INSPECT unlock WARNING SWITCH ASSEMBLY

OK -- REPLACE TRANSPONDER KEY ECU ASSEMBLY

2. INSPECT unlock WARNING SWITCH ASSEMBLY

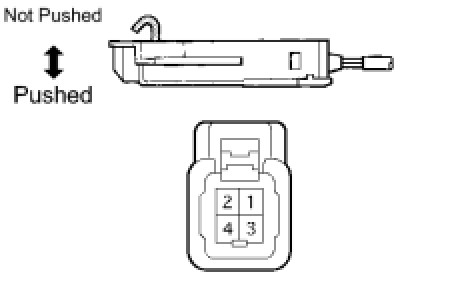

(a) Remove the unlock warning switch assembly.

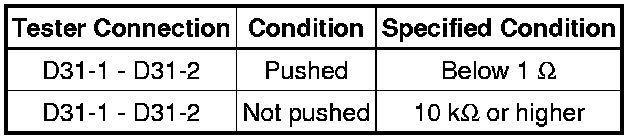

(b) Measure the resistance according to the value(s) in the table below.

Resistance:





NG -- REPLACE unlock WARNING SWITCH ASSEMBLY
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (unlock WARNING SWITCH ASSEMBLY - BODY GROUND)

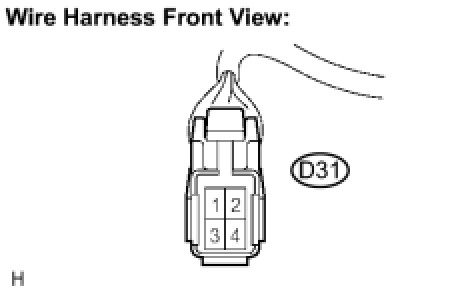

(a) Disconnect the D31 switch connector.

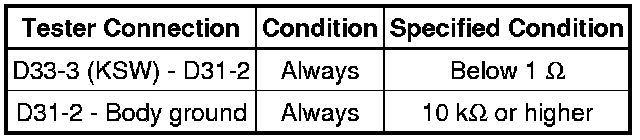

(b) Measure the resistance according to the value(s) in the table below.

Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

4. CHECK HARNESS AND CONNECTOR (TRANSPONDER KEY ECU ASSEMBLY - unlock WARNING SWITCH)

(a) Disconnect the D33 ECU and D31 switch connectors.





(b) Measure the resistance according to the value(s) in the table below.

Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE TRANSPONDER KEY ECU ASSEMBLY
