B2277

2GR-FE STARTING: SMART KEY SYSTEM: B2277: Detecting Vehicle Submersion
B2277 - Detecting Vehicle Submersion

DESCRIPTION

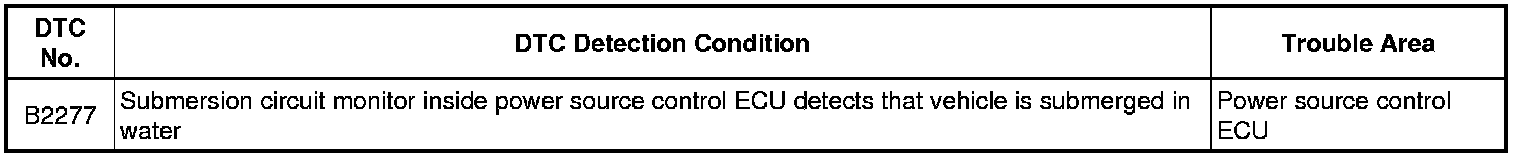

This DTC is output when the submersion circuit monitor inside the power source control ECU detects that the vehicle is submerged in water.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC OUTPUT

(a) Delete the DTC Reading and Clearing Diagnostic Trouble Codes.

HINT
After all DTCs are cleared, check if the trouble occurs again 30 seconds after the engine switch is turned on (IG).

(b) Check for DTCs again.

OK:

No DTC is output.

NG -- REPLACE POWER SOURCE CONTROL ECU

OK -- END
