Navigation System (to 12/2010)

NAVIGATION: NAVIGATION SYSTEM: B15FE, B15FF: XM Tuner Antenna Disconnected
B15FF - XM Tuner Antenna Short

DESCRIPTION

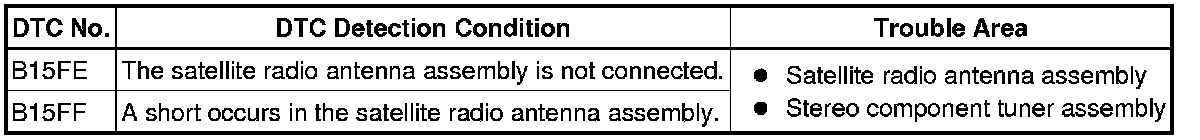

These DTCs are stored when a malfunction occurs in the satellite radio antenna assembly which is connected to the stereo component tuner assembly.





INSPECTION PROCEDURE

NOTICE:
After replacing the stereo component tuner assembly of vehicles subscribed to pay-type satellite radio broadcasts, registration of the XM radio ID is necessary.

PROCEDURE

1. CHECK CONNECTION OF SATELLITE RADIO ANTENNA CABLE

(a) Check if the satellite radio antenna cable is securely connected to the stereo component tuner assembly.

OK:

Satellite radio antenna cable is securely connected.

NG -- SECURELY CONNECT SATELLITE RADIO ANTENNA CABLE
OK -- Continue to next step.

2. REPLACE SATELLITE RADIO ANTENNA ASSEMBLY

(a) Replace the satellite radio antenna assembly Removal (to 12/2010).

(b) Clear the DTCs DTC Check / Clear (to 12/2010).

(c) Recheck for DTCs and check if the same DTC is output again.

OK:

No DTCs are output.

NG -- REPLACE STEREO COMPONENT TUNER ASSEMBLY Removal (to 12/2010)

OK -- END
