Navigation System (from 12/2010)

NAVIGATION: NAVIGATION SYSTEM: B15BA: XM Tuner Malfunction
B15BA - XM Tuner Malfunction

DESCRIPTION

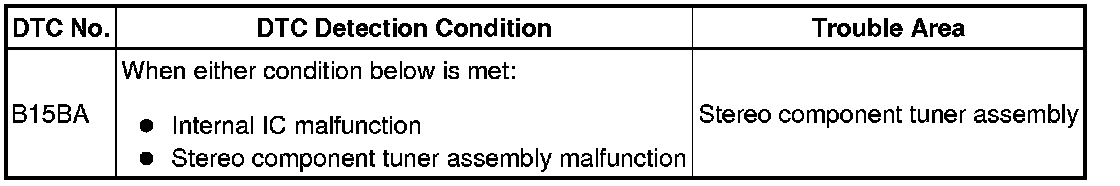

This DTC is stored when a malfunction occurs in the stereo component tuner assembly.





INSPECTION PROCEDURE

NOTICE:
After replacing the stereo component tuner assembly of vehicles subscribed to pay-type satellite radio broadcasts, registration of the XM radio ID is necessary.

PROCEDURE

1. CHECK DTC

(a) Clear the DTC DTC Check / Clear (from 12/2010).

(b) Recheck for DTCs and check if the same DTC is output again.

OK:

No DTCs are output.

NG -- REPLACE STEREO COMPONENT TUNER ASSEMBLY Removal (from 12/2010)

OK -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
