Navigation System (from 12/2010)

NAVIGATION: NAVIGATION SYSTEM: B15B0: Display Screen Malfunction
B15B0 - Display Screen Malfunction

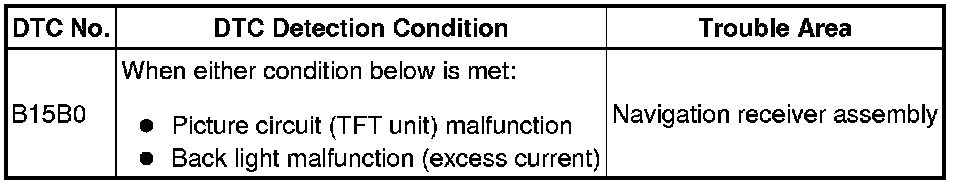

DESCRIPTION

This DTC is stored when a malfunction occurs in the navigation receiver assembly.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC

(a) Clear the DTC DTC Check / Clear (from 12/2010).

(b) Recheck for DTCs and check if the same DTC is output again.

OK:

No DTCs are output.

NG -- REPLACE NAVIGATION RECEIVER ASSEMBLY Removal (from 12/2010)

OK -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
