B1446

AIR CONDITIONING: AIR CONDITIONING SYSTEM: B1446/46: Air Mix Damper Control Servo Motor Circuit (Driver Side)
B1446/46 - Air Mix Damper Control Servo Motor Circuit (Driver Side)

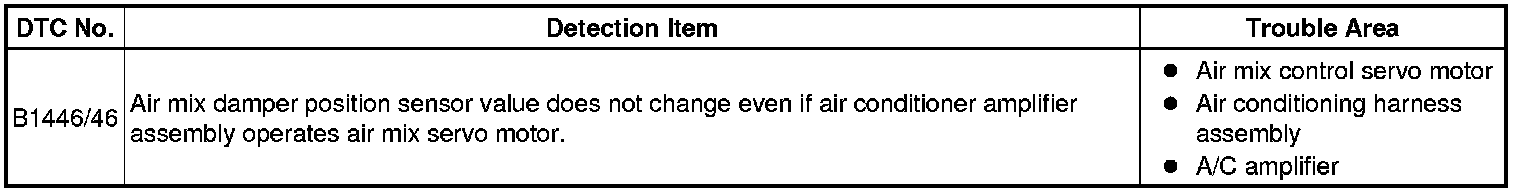

DESCRIPTION

The air mix damper servo sends pulse signals to inform the A/C amplifier of the damper position. The A/C amplifier activates the motor (normal, reverse) based on the signals to move the air mix damper (driver seat) to any position, which adjusts the amount of air passing the heater core after passing the evaporator to control the blowing air temperature.

HINT
Confirm that no mechanical problem is present because this diagnostic code can be output when either a damper link or damper is mechanically locked.





WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. READ VALUE USING TECHSTREAM

(a) Connect Techstream to DLC3.

(b) Turn the ignition switch on (IG) and turn Techstream on.

(c) Select the items below in the Data List, and read the displays on Techstream.

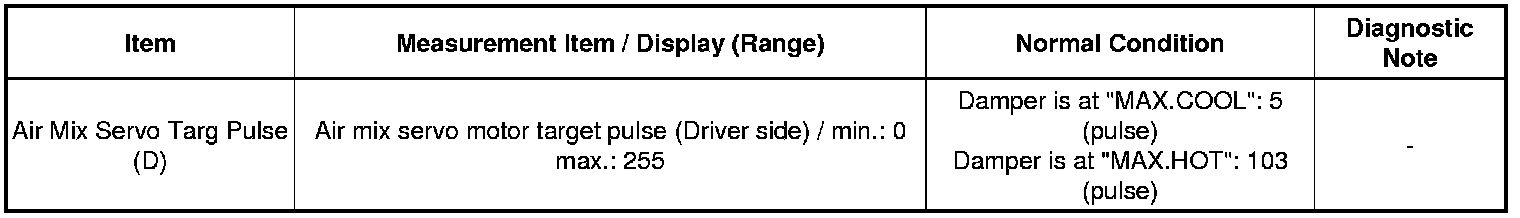

Data List / Air Conditioner:





OK:

The display is as specified in the normal condition.

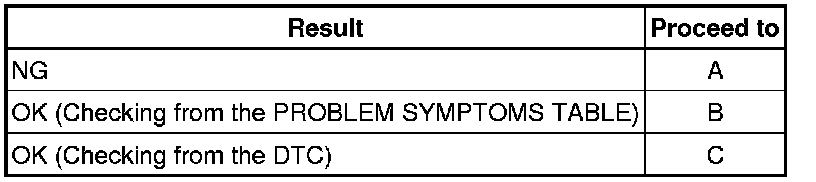

Result:





C -- REPLACE AIR CONDITIONING AMPLIFIER

B -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
A -- Continue to next step.

2. REPLACE AIR MIX CONTROL SERVO MOTOR

HINT
Since the servo motor cannot be inspected while it is removed from the vehicle, replace the servo motor with a normal one and check that the condition returns to normal.

NG -- REPLACE AIR CONDITIONING HARNESS ASSEMBLY
