Inspection

WIPER / WASHER: REAR WIPER MOTOR: INSPECTION

1. INSPECT REAR WIPER MOTOR AND BRACKET ASSEMBLY





(a) Check the wiper low operation.

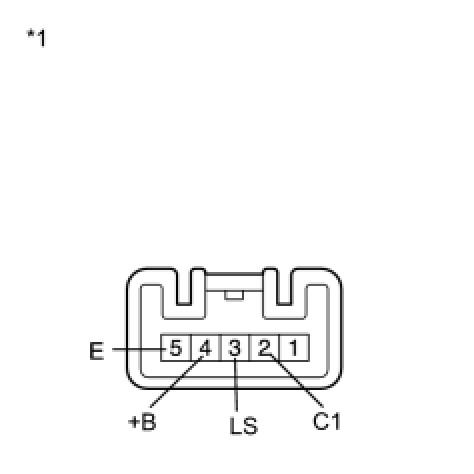

(1) Connect a battery positive (+) lead to terminal 4 (+B), and a negative (-) lead to terminal 3 (LS) and terminal 5 (E), and check that the motor operates.

OK:

Motor operates.

(2) If the result is not as specified, replace the motor assembly.

(b) Check the intermittent operation.

(1) Connect a battery positive (+) lead to terminal 4 (+B), and a negative (-) lead to terminal 2 (C1) and terminal 5 (E), and check that the motor operates.

OK:

Motor operates.

(2) If the result is not as specified, replace the rear wiper motor and bracket assembly.

Text in Illustration:
