Removal

WIPER / WASHER: REAR WIPER MOTOR: REMOVAL

1. REMOVE BACK DOOR PANEL TRIM ASSEMBLY Disassembly

2. REMOVE REAR WIPER ARM HEAD CAP

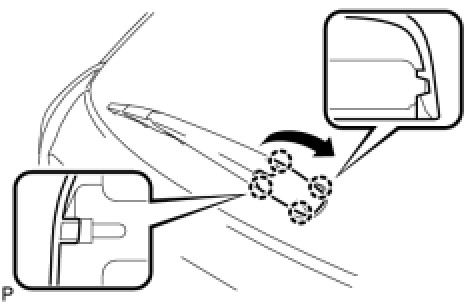

(a) Disengage the 4 claws and remove the rear wiper arm head cap as shown in the illustration.





3. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY

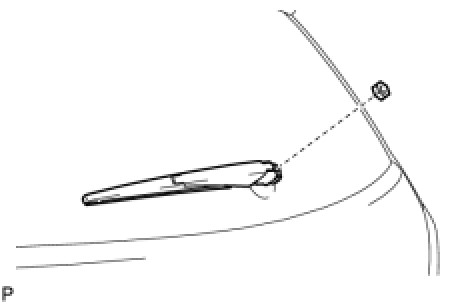

(a) Remove the nut and the rear wiper arm and blade assembly.





4. REMOVE REAR WIPER MOTOR GROMMET

(a) Remove the rear wiper motor grommet.





5. REMOVE REAR WIPER MOTOR AND BRACKET ASSEMBLY

(a) Disconnect the connector.

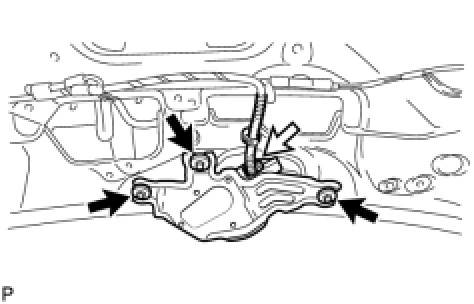

(b) Remove the 3 bolts and the rear wiper motor and bracket assembly.
