Removal

WIPER / WASHER: WASHER MOTOR (for Rear Side): REMOVAL

1. REMOVE FRONT WHEEL RH

2. REMOVE FRONT FENDER OUTSIDE MOULDING RH

HINT
Use the same procedure for the RH side and LH side Removal.

3. REMOVE FRONT FENDER LINER RH Removal

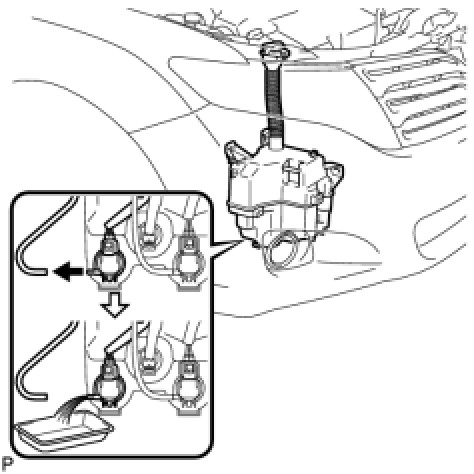

4. DRAIN WINDSHIELD WASHER FLUID

(a) Disconnect the washer hose from the rear washer motor and pump assembly, and drain the washer fluid.





HINT
Use a container to collect the washer fluid.

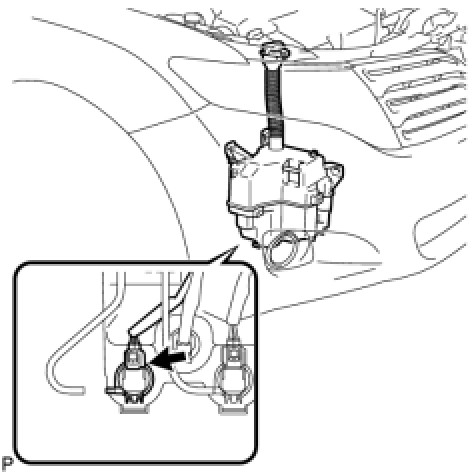

5. REMOVE REAR WASHER MOTOR AND PUMP ASSEMBLY

(a) Disconnect the connector.





(b) Remove the rear washer motor and pump assembly.

HINT
Use a container to collect the washer fluid.
