Removal

AXLE AND DIFFERENTIAL: DIFFERENTIAL MOUNT CUSHION: REMOVAL

1. REMOVE DIFFERENTIAL CARRIER ASSEMBLY WITH DIFFERENTIAL SUPPORT

HINT
Refer to the procedure up to Remove Differential Carrier Assembly with Differential Support Removal.

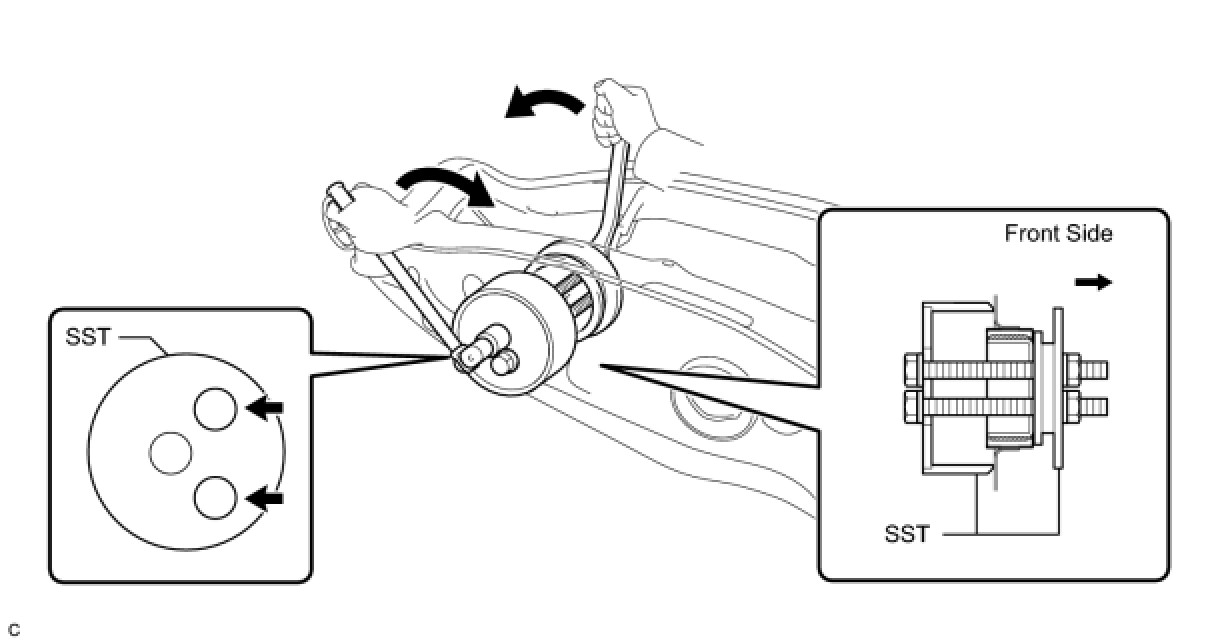

2. REMOVE REAR NO. 1 DIFFERENTIAL MOUNT CUSHION

(a) Using SST, remove the rear No. 1 differential mount cushion.





SST : 09316-12010

SST : 09570-24011

NOTICE:
* Do not bring SST into contact with the rear suspension member.
* Do not slant the SST bolts.
* Do not set SST in the wrong direction.
* Tighten the 2 SST bolts equally into the 2 rear No. 1 differential mount cushion holes.

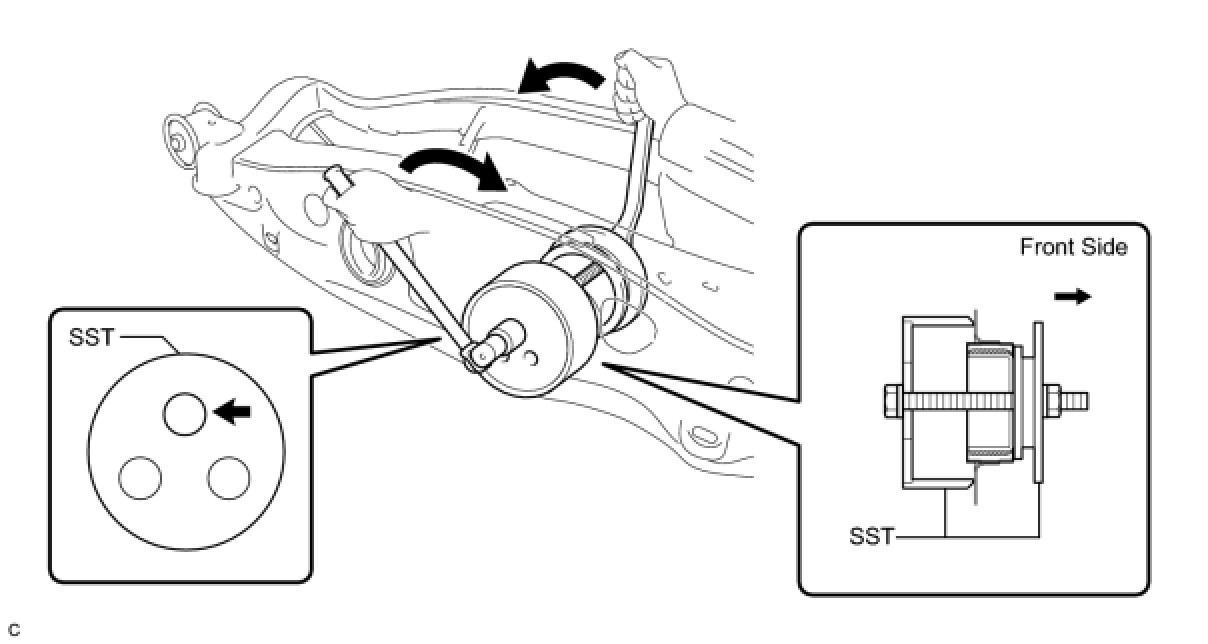

3. REMOVE REAR NO. 2 DIFFERENTIAL MOUNT CUSHION

(a) Using SST, remove the rear No. 2 differential mount cushion.





SST : 09316-12010

SST : 09570-24011

NOTICE:
* Do not bring SST into contact with the rear suspension member.
* Do not slant the SST bolts.
* Do not set SST in the wrong direction.
