Service Data

SPECIFICATIONS: U760F AUTOMATIC TRANSMISSION / TRANSAXLE: SERVICE DATA

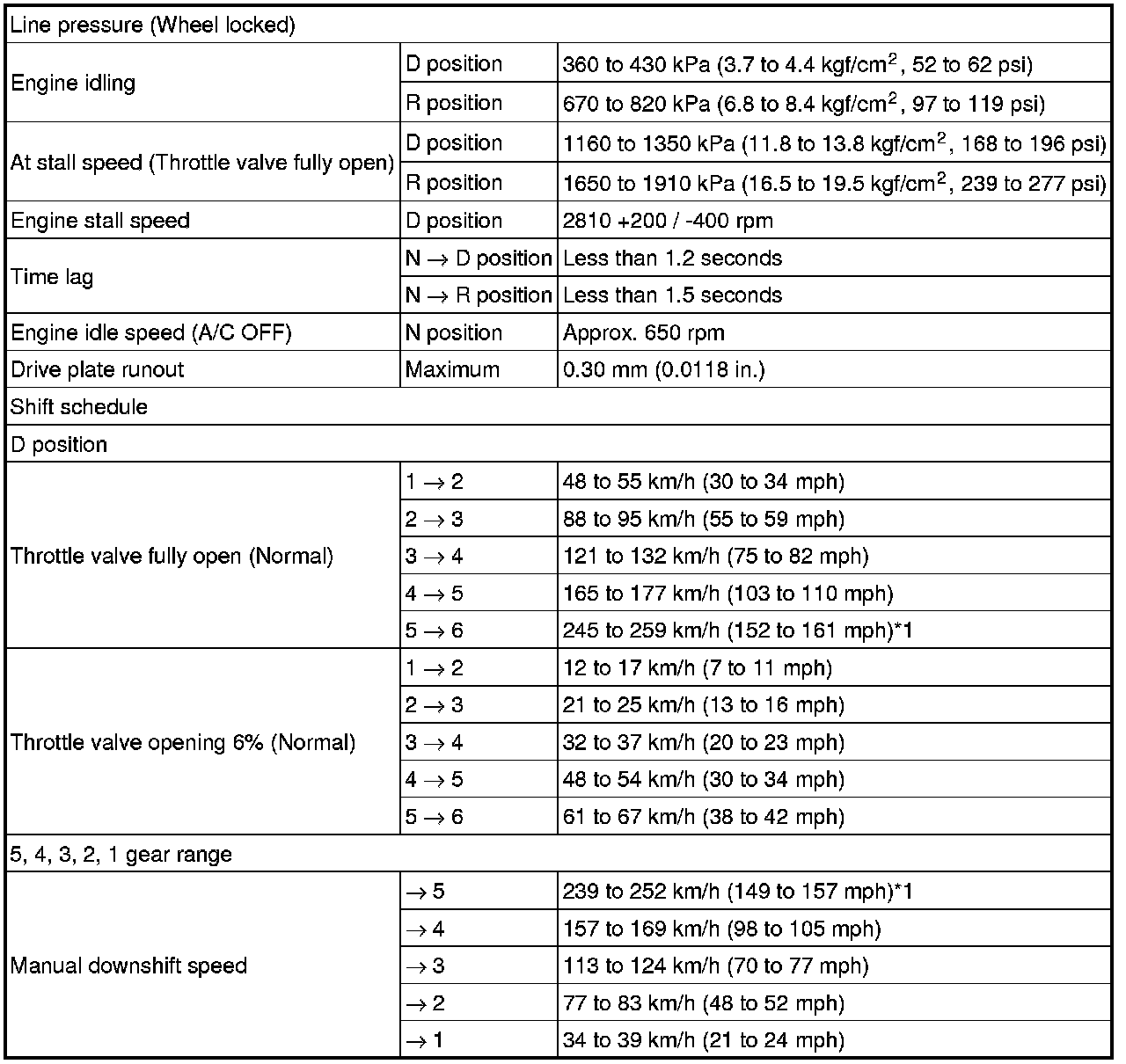

*1: Speed limiter active

Park/Neutral Position Switch:

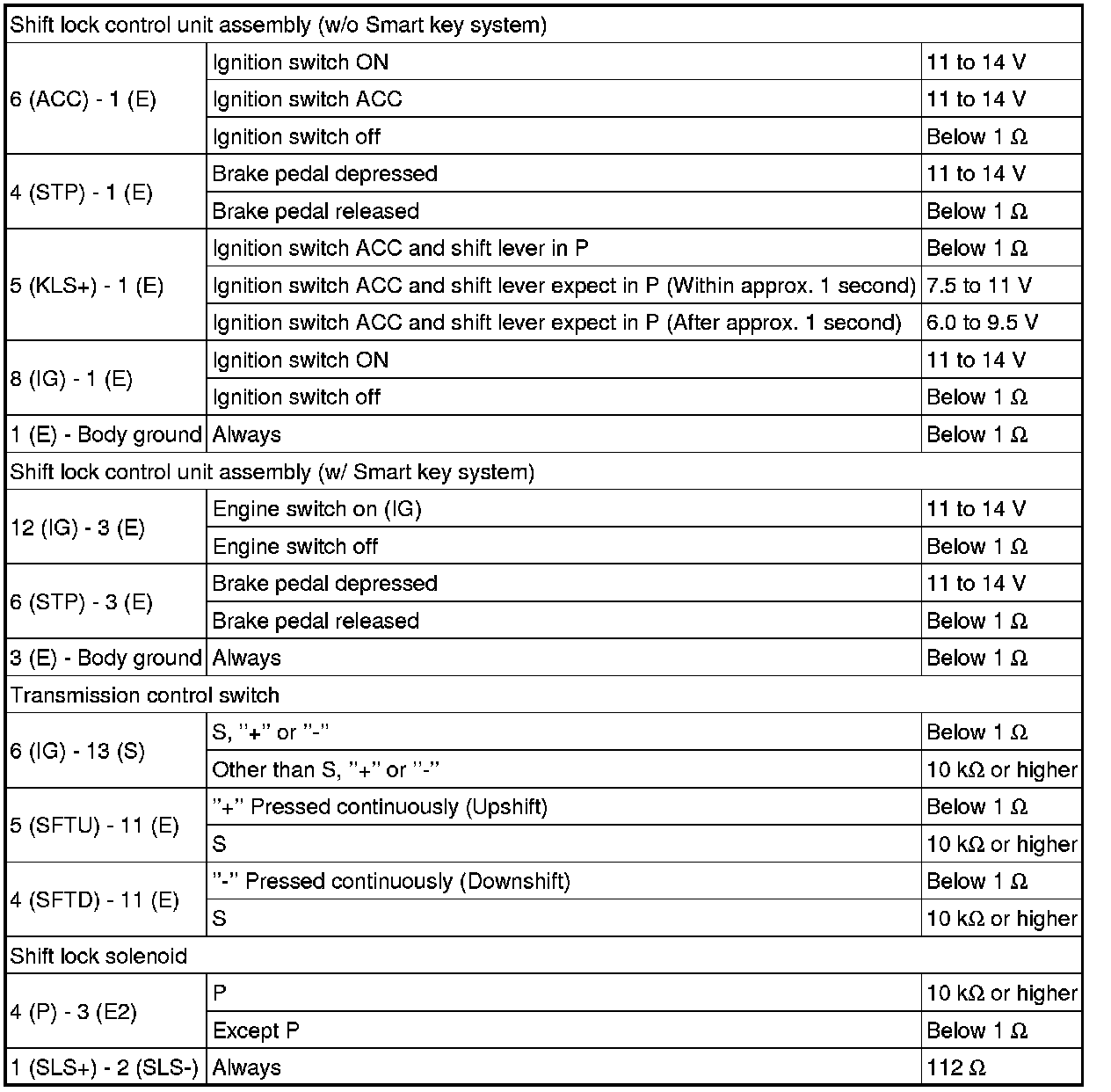

Shift Lever:

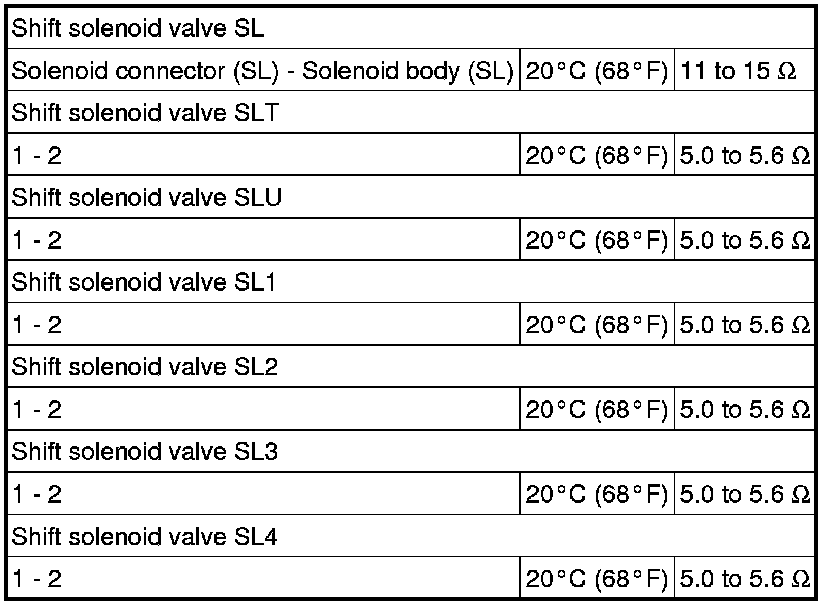

Shift Solenoid Valve:

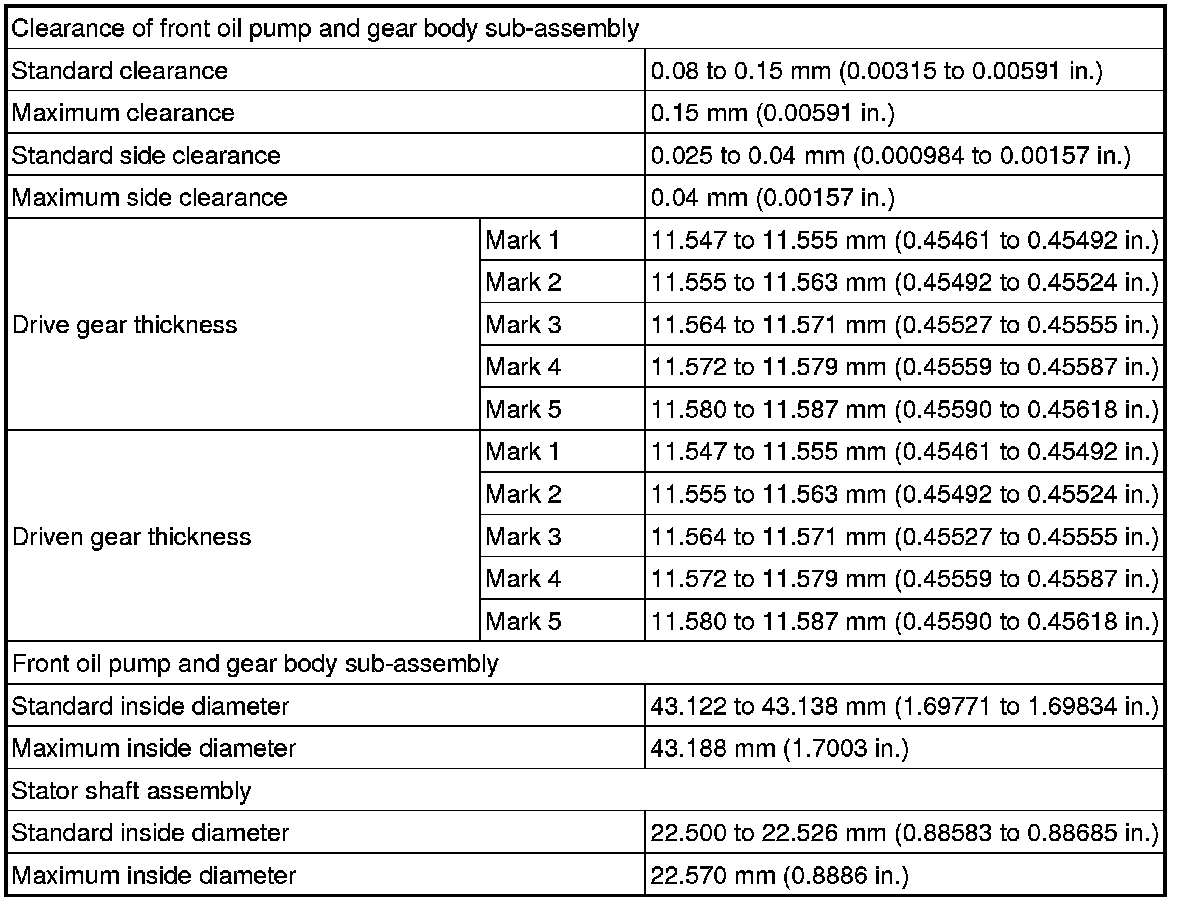

Oil Pump:
