U760F AUTOMATIC TRANSMISSION / TRANSAXLE: DIFFERENTIAL OIL SEAL (for RH Side): REPLACEMENT

1. REMOVE TRANSFER ASSEMBLY

HINT
Removal.

2. REMOVE FRONT TRANSAXLE CASE OIL SEAL

(a) for Outside:

Text in Illustration:

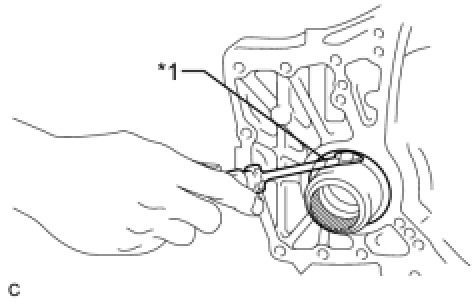

(1) Using a screwdriver with vinyl tape wound around tip, remove the front transaxle case oil seal.

NOTICE:
Be careful not to damage the housing.

(b) for Inside:





(1) Using SST, tap out the front transaxle case oil seal.

SST : 09308-00010

NOTICE:
Be careful not to damage the housing.

3. INSTALL FRONT TRANSAXLE CASE OIL SEAL

(a) for Inside:





(1) Coat the lip of a new front transaxle case oil seal with MP grease.

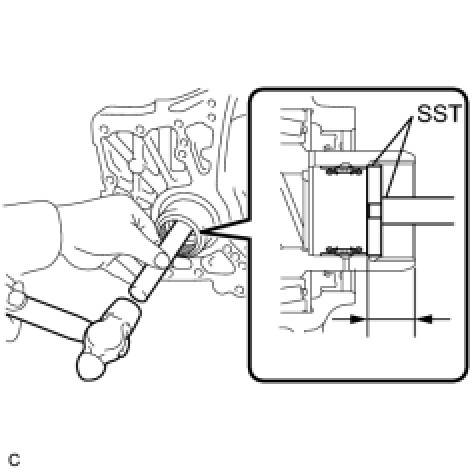

(2) Using SST and a hammer, tap in the front transaxle case oil seal.

SST : 09950-60010

09951-00410

SST : 09950-70010

09951-07200

Oil seal driven in depth:

21.5 to 22.5 mm (0.846 to 0.886 in.)

(b) for Outside:





(1) Coat the lip of a new front transaxle case oil seal with MP grease.

(2) Using SST and a hammer, tap in the front transaxle case oil seal.

SST : 09649-17010

SST : 09950-70010

09951-07200

Oil seal driven in depth:

5.5 to 6.5 mm (0.217 to 0.256 in.)

NOTICE:
Check that the oil seal is installed in the correct direction.

4. INSTALL TRANSFER ASSEMBLY

HINT
Installation.
