Replacement

U760F AUTOMATIC TRANSMISSION / TRANSAXLE: DIFFERENTIAL OIL SEAL (for LH Side): REPLACEMENT

1. DRAIN AUTOMATIC TRANSAXLE FLUID

(a) Remove the No. 2 engine under cover.

(b) Remove the front fender apron seal LH Removal.

(c) Using a 6 mm hexagon socket wrench, remove the overflow plug and gasket from the automatic transaxle.

Text in Illustration:

(d) Remove the refill plug and gasket from the automatic transaxle.





(e) Using a 6 mm hexagon socket wrench, remove the No. 1 transmission oil filler tube from the automatic transaxle.

Text in Illustration:

(f) Drain ATF from the automatic transaxle.

(g) Using a 6 mm hexagon socket wrench, install the No. 1 transmission oil filler tube to the automatic transaxle.

Text in Illustration:

Torque : 0.8 Nm (8 kgf-cm, 7 in-lbf)

(h) Using a 6 mm hexagon socket wrench, install a new gasket and the overflow plug to the automatic transaxle.

Text in Illustration:

Torque : 40 Nm (408 kgf-cm, 30 ft-lbf)

(i) Install a new gasket and the refill plug to the automatic transaxle.





Torque : 49 Nm (500 kgf-cm, 36 ft-lbf)

2. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH

HINT
Removal.

3. REMOVE TRANSAXLE CASE OIL SEAL

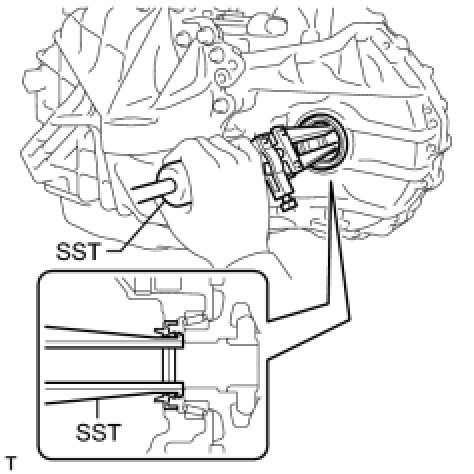

(a) Using SST, tap out the transaxle case oil seal.





SST : 09308-00010

4. INSTALL TRANSAXLE CASE OIL SEAL

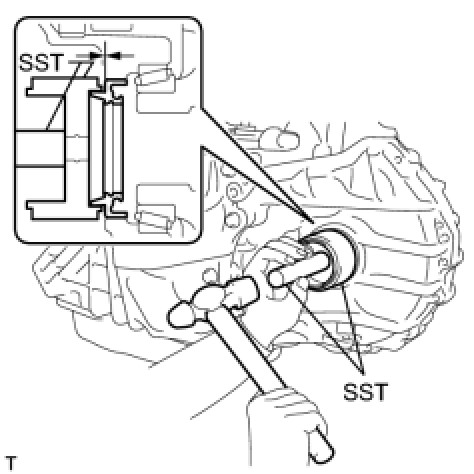

(a) Using SST and a hammer, tap in a new transaxle case oil seal.





SST : 09316-10010

SST : 09950-70010

09951-07100

Oil seal driven in depth:

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

NOTICE:
Check that the oil seal is installed in the correct direction.

(b) Coat the lip of the transaxle case oil seal with MP grease.

5. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH

HINT
Installation.

6. ADD AUTOMATIC TRANSAXLE FLUID

HINT
Procedures.
