Service Data





SPECIFICATIONS: 1AR-FE COOLING: SERVICE DATA

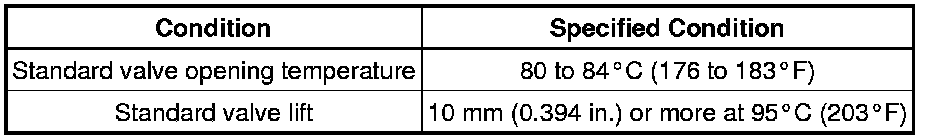

Thermostat:

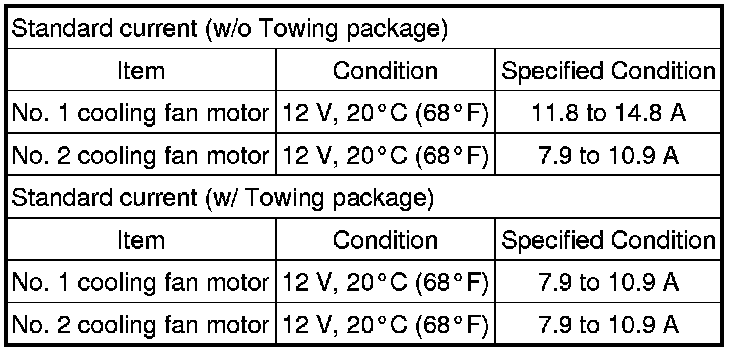

Cooling fan motor:





Radiator cap:
