Power Seat Switch

SEAT: POWER SEAT SWITCH: INSPECTION

1. INSPECT FRONT POWER SEAT SWITCH (DRIVER SIDE)

(a) Measure the resistance between the terminals when each switch is operated.





Standard Resistance:

Slide Switch:

Front Vertical Switch:

Lifter Switch:

Reclining Switch:

(b) If the result is not as specified, replace the switch.

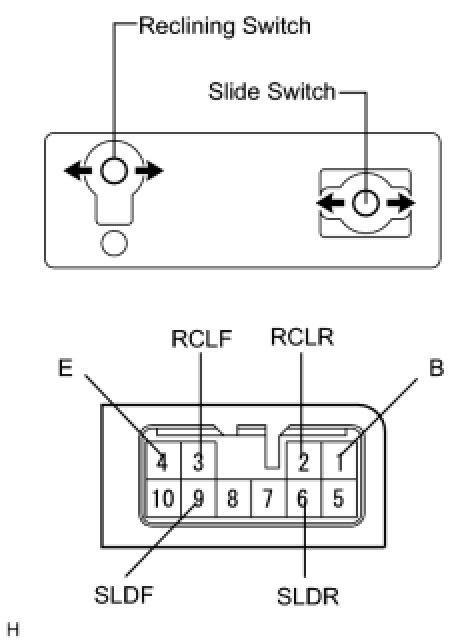

2. INSPECT FRONT POWER SEAT SWITCH (PASSENGER SIDE)

(a) Measure the resistance between the terminals when each switch is operated.





Standard Resistance:

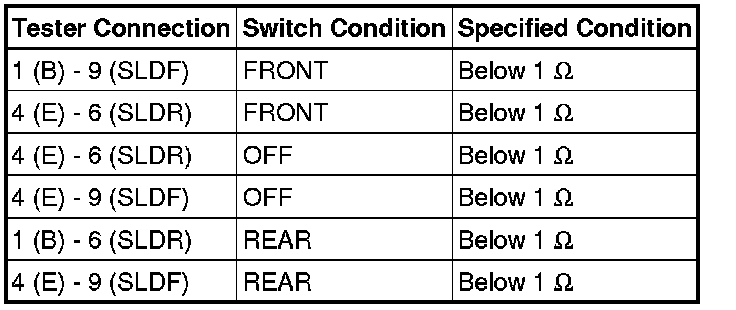

Slide Switch:

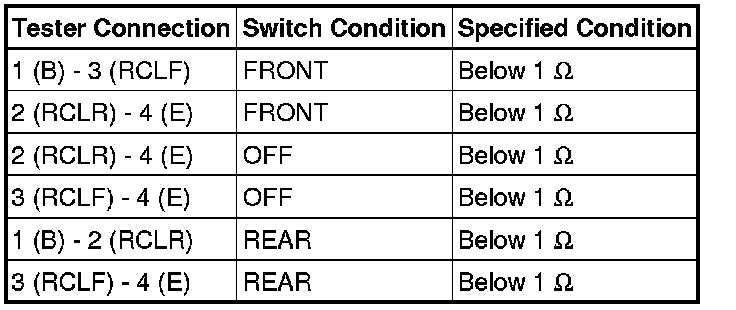

Reclining Switch:

(b) If the result is not as specified, replace the switch.
