Driver Side Seat Belt Warning Light Does Not Operate

SEAT BELT: SEAT BELT WARNING SYSTEM: Driver Side Seat Belt Warning Light does not Operate
- Driver Side Seat Belt Warning Light does not Operate

DESCRIPTION

When the ignition switch is ON, the center airbag sensor assembly transmits front seat inner belt status signals to the combination meter assembly through CAN. If the driver seat belt is not fastened, the combination meter assembly blinks the driver side seat belt warning light. If the seat belt is fastened, the warning light goes off.

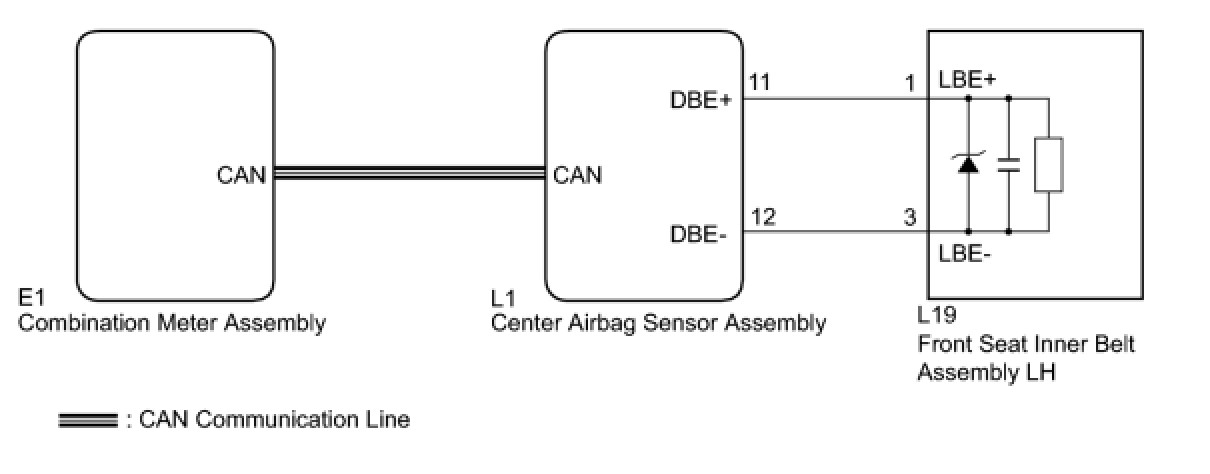

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
The seat belt warning system uses the CAN communication system. First, confirm that there is no malfunction in the CAN communication system. Refer to the How to Proceed with Troubleshooting procedure How To Proceed With Troubleshooting.

PROCEDURE

1. CHECK DTC OUTPUT (CAN COMMUNICATION SYSTEM)

(a) Clear the DTC How to Proceed With Troubleshooting.

(b) Recheck for DTCs.

Result:





B -- GO TO CAN COMMUNICATION SYSTEM How to Proceed With Troubleshooting
A -- Continue to next step.

2. CHECK DTC OUTPUT (AIRBAG SYSTEM)

(a) Clear the DTC DTC Check / Clear.

(b) Recheck for DTCs.

Result:





B -- GO TO AIRBAG SYSTEM Airbag System
A -- Continue to next step.

3. PERFORM ACTIVE TEST USING TECHSTREAM

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / Combination Meter / Active Test.

(e) Perform the Active Test according to the display on the Techstream.

Combination Meter (Combination Meter Assembly)

Combination Meter (Combination Meter Assembly):

OK:

The driver side seat belt warning light on the combination meter assembly operates normally.

NG -- REPLACE COMBINATION METER ASSEMBLY Removal

OK -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
