Removal

SEAT BELT: REAR SEAT INNER BELT ASSEMBLY (for RH Side): REMOVAL

1. REMOVE REAR SEAT HEADREST ASSEMBLY Removal

2. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY Removal

3. REMOVE REAR SEAT INNER TRACK BRACKET COVER Removal

4. REMOVE REAR SEAT OUTER TRACK BRACKET COVER Removal

5. DISCONNECT REAR SEAT RECLINING CONTROL CABLE SUB-ASSEMBLY Removal

6. REMOVE REAR SEAT ASSEMBLY RH Removal

7. REMOVE SEAT ADJUSTER COVER CAP RH Disassembly

8. REMOVE REAR SEAT RECLINING RELEASE LEVER RH Disassembly

9. REMOVE REAR SEAT RECLINING COVER RH Disassembly

10. REMOVE CENTER SEAT HINGE COVER RH Disassembly

11. REMOVE REAR SEAT INNER RECLINING COVER RH Disassembly

12. REMOVE REAR SEAT CENTER ARMREST ASSEMBLY Disassembly

13. REMOVE REAR SEAT CUSHION COVER WITH PAD Disassembly

14. REMOVE REAR SEAT INNER BELT ASSEMBLY RH

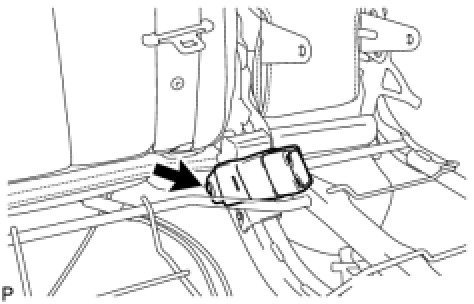

(a) Remove the bolt and the rear seat inner belt assembly RH.
