Installation

SEAT BELT: REAR SEAT INNER BELT ASSEMBLY (for LH Side): INSTALLATION

1. INSTALL REAR SEAT INNER BELT ASSEMBLY LH

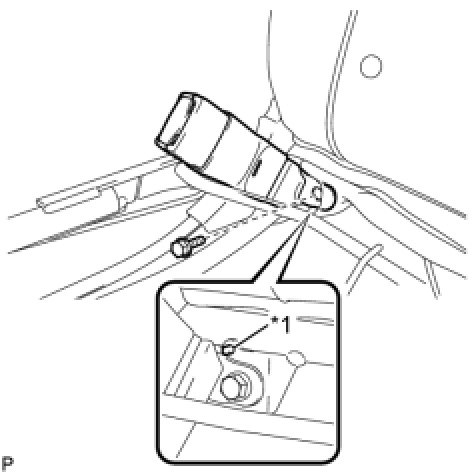

(a) Install the rear seat inner belt assembly LH with the bolt.

Text in Illustration:

Torque : 42 Nm (428 kgf-cm, 31 ft-lbf)

NOTICE:
Do not allow the anchor part of the rear seat outer belt assembly to overlap the protruding part of the floor panel.

2. INSTALL REAR SEAT CUSHION COVER WITH PAD Reassembly

3. INSTALL REAR SEAT INNER RECLINING COVER LH Reassembly

4. INSTALL REAR SEAT RECLINING COVER LH Reassembly

5. INSTALL REAR SEAT RECLINING RELEASE LEVER LH Reassembly

6. INSTALL SEAT ADJUSTER COVER CAP LH Reassembly

7. INSTALL REAR SEAT ASSEMBLY LH Installation

8. CONNECT REAR SEAT NO. 2 RECLINING CONTROL CABLE SUB-ASSEMBLY Installation

9. INSTALL REAR SEAT OUTER TRACK BRACKET COVER Installation

10. INSTALL REAR SEAT INNER TRACK BRACKET COVER Installation

11. INSTALL REAR SEAT HEADREST ASSEMBLY Installation
