Removal

SEAT BELT: REAR CENTER SEAT OUTER BELT ASSEMBLY: REMOVAL

1. REMOVE REAR SEAT HEADREST ASSEMBLY Removal

2. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY Removal

3. REMOVE REAR SEAT INNER TRACK BRACKET COVER Removal

4. REMOVE REAR SEAT OUTER TRACK BRACKET COVER Removal

5. DISCONNECT REAR SEAT RECLINING CONTROL CABLE SUB-ASSEMBLY Removal

6. REMOVE REAR SEAT ASSEMBLY RH Removal

7. REMOVE SEAT ADJUSTER COVER CAP RH Disassembly

8. REMOVE REAR SEAT RECLINING RELEASE LEVER RH Disassembly

9. REMOVE REAR SEAT RECLINING COVER RH Disassembly

10. REMOVE CENTER SEAT HINGE COVER RH Disassembly

11. REMOVE REAR SEAT INNER RECLINING COVER RH Disassembly

12. REMOVE REAR SEAT CENTER ARMREST ASSEMBLY Disassembly

13. REMOVE REAR SEAT CUSHION COVER WITH PAD Disassembly

14. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

(a) Remove the bolt and disconnect the rear center seat outer belt assembly.

15. REMOVE REAR SEATBACK BOARD RH Disassembly

16. REMOVE REAR SEAT SHOULDER BELT COVER

(a) Remove the screw.

(b) Disengage the 2 guides and disconnect the rear seatback upper lock bezel as shown in the illustration.

17. REMOVE REAR SEAT HEADREST SUPPORT LH Disassembly

18. REMOVE REAR SEAT HEADREST SUPPORT RH Disassembly

19. REMOVE REAR SEAT CENTER HEADREST SUPPORT LH Disassembly

20. REMOVE REAR SEAT CENTER HEADREST SUPPORT RH Disassembly

21. REMOVE REAR SEATBACK COVER WITH PAD Disassembly

22. REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY

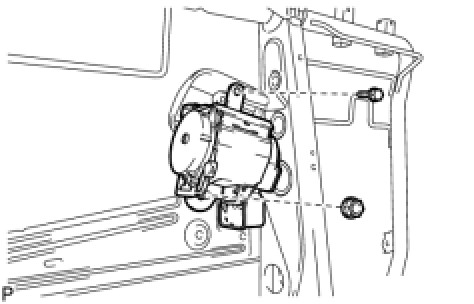

(a) Remove the bolt, nut, and the rear center seat outer belt assembly.
