Installation

SEAT BELT: REAR CENTER SEAT OUTER BELT ASSEMBLY: INSTALLATION

1. INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY

(a) Install the rear center seat outer belt assembly with the bolt and nut.

Bolt - Torque : 7.5 Nm (77 kgf-cm, 66 in-lbf)

Nut - Torque : 42 Nm (428 kgf-cm, 31 ft-lbf)

2. INSTALL REAR SEATBACK COVER WITH PAD Reassembly

3. INSTALL REAR SEAT CENTER HEADREST SUPPORT RH Reassembly

4. INSTALL REAR SEAT CENTER HEADREST SUPPORT LH Reassembly

5. INSTALL REAR SEAT HEADREST SUPPORT RH Reassembly

6. INSTALL REAR SEAT HEADREST SUPPORT LH Reassembly

7. INSTALL REAR SEAT SHOULDER BELT COVER

(a) Engage the 2 guides and claw, and install the rear seat shoulder cover as shown in the illustration.

(b) Engage the 2 guides as shown in the illustration.

8. INSTALL REAR SEATBACK BOARD RH Reassembly

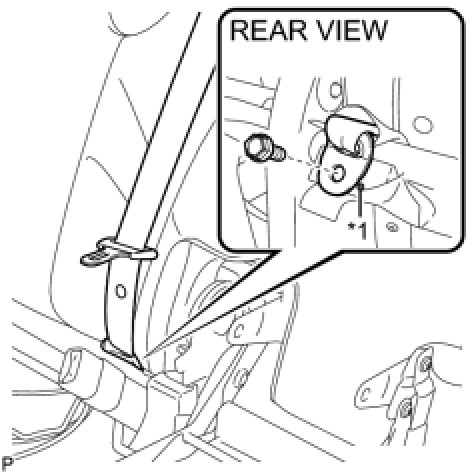

9. CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

(a) Connect the rear center seat outer belt with the bolt.

Text in Illustration:

Torque : 42 Nm (428 kgf-cm, 31 ft-lbf)

10. INSTALL REAR SEAT CUSHION COVER WITH PAD Reassembly

11. INSTALL REAR SEAT CENTER ARMREST ASSEMBLY Reassembly

12. INSTALL REAR SEAT RECLINING COVER RH Reassembly

13. INSTALL CENTER SEAT HINGE COVER RH Reassembly

14. INSTALL REAR SEAT INNER RECLINING COVER RH Reassembly

15. INSTALL REAR SEAT RECLINING RELEASE LEVER RH Reassembly

16. INSTALL SEAT ADJUSTER COVER CAP RH Reassembly

17. INSTALL REAR SEAT ASSEMBLY RH Installation

18. INSTALL REAR SEAT RECLINING CONTROL CABLE SUB-ASSEMBLY Installation

19. INSTALL REAR SEAT OUTER TRACK BRACKET COVER Installation

20. INSTALL REAR SEAT INNER TRACK BRACKET COVER Installation

21. INSTALL REAR SEAT CENTER HEADREST ASSEMBLY Installation

22. INSTALL REAR SEAT HEADREST ASSEMBLY Installation
