Removal

SEAT BELT: REAR CENTER SEAT INNER BELT ASSEMBLY: REMOVAL

1. REMOVE REAR SEAT HEADREST ASSEMBLY Removal

2. REMOVE REAR SEAT INNER TRACK BRACKET COVER Removal

3. REMOVE REAR SEAT OUTER TRACK BRACKET COVER Removal

4. DISCONNECT REAR SEAT NO. 2 RECLINING CONTROL CABLE SUB-ASSEMBLY Removal

5. REMOVE REAR SEAT ASSEMBLY LH Removal

6. REMOVE REAR CENTER SEAT INNER BELT ASSEMBLY

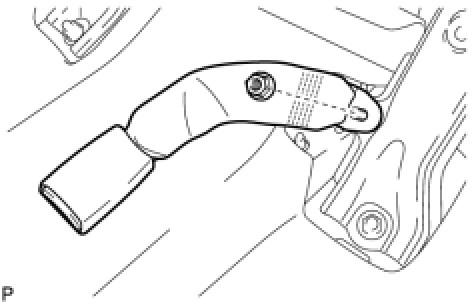

(a) Remove the nut and the rear center seat inner belt assembly.
