Removal

SEAT BELT: CHILD RESTRAINT SEAT TETHER ANCHOR: REMOVAL

1. REMOVE DECK BOARD ASSEMBLY Removal

2. REMOVE NO. 3 DECK BOARD SUB-ASSEMBLY Removal

3. REMOVE DECK SIDE TRIM BOX LH Removal

4. REMOVE NO. 2 DECK BOARD SUB-ASSEMBLY Removal

5. REMOVE DECK SIDE TRIM BOX RH Removal

6. REMOVE NO. 1 DECK BOARD Removal

7. REMOVE REAR SEAT SUB FLOOR PANEL ASSEMBLY Removal

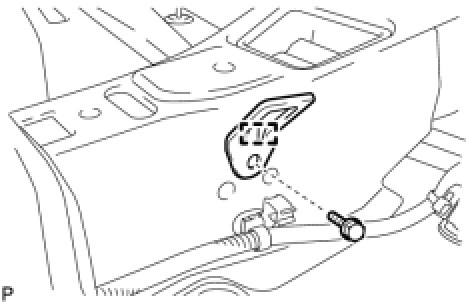

8. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET

(a) Remove the bolt.





(b) Disengage the guide and remove the child restraint seat tether anchor bracket.

HINT
Use the same procedure for the other 2 child restraint seat tether anchor brackets.
