Installation

SUPPLEMENTAL RESTRAINT SYSTEMS: KNEE AIRBAG ASSEMBLY: INSTALLATION

1. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY

(a) Check that the ignition switch is off.

(b) Check that the cable is disconnected from the negative (-) battery terminal.

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

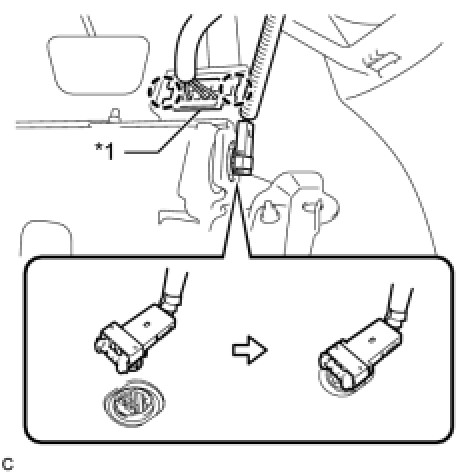

(c) Connect the driver side knee airbag connector to the driver side knee airbag assembly.

Text in Illustration:

NOTICE:
When connecting the airbag connector, take care not to damage the airbag wire harness.

(d) Connect the DLC3 to the driver side knee airbag assembly with the 2 claws.

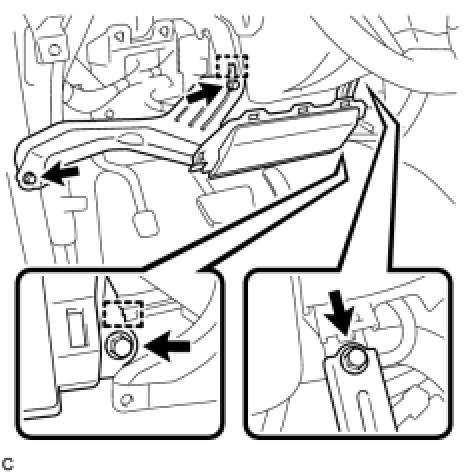

(e) Temporarily install the driver side knee airbag assembly with the 2 hooks.





(f) Install the driver side knee airbag assembly with the 4 bolts.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

2. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL Installation

3. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH Installation

4. INSTALL FRONT DOOR SCUFF PLATE LH Installation

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

6. PERFORM DIAGNOSTIC SYSTEM CHECK

(a) Perform a diagnostic system check DTC Check / Clear.

7. INSPECT SRS WARNING LIGHT

(a) Inspect the SRS warning light Diagnosis System.
