Removal

1AR-FE ENGINE CONTROL: CRANKSHAFT POSITION SENSOR: REMOVAL

1. REMOVE FRONT FENDER APRON SEAL RH Removal

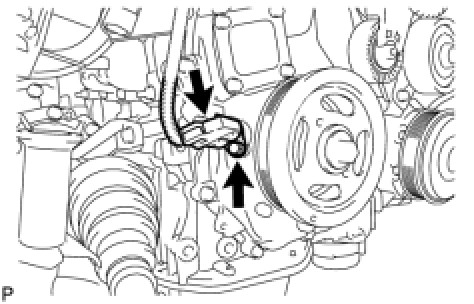

2. REMOVE CRANKSHAFT POSITION SENSOR





(a) Disconnect the sensor connector.

(b) Remove the bolt and sensor.
