Reassembly

1AR-FE FUEL: FUEL PUMP: REASSEMBLY

1. INSTALL FUEL PUMP ASSEMBLY WITH FILTER

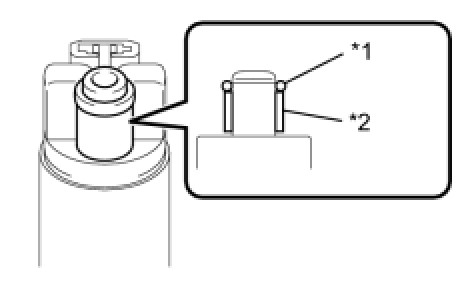

(a) Apply gasoline to a new O-ring. Then install the O-ring and spacer to the fuel pump.

Text in Illustration:

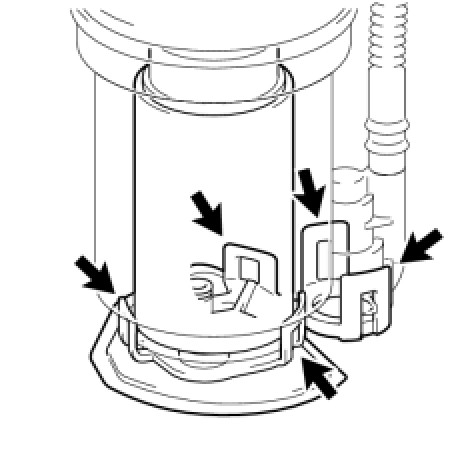

(b) Engage the 5 claws on the fuel filter and install the fuel pump assembly with filter.

NOTICE:
* Make sure the O-ring is not cut or pinched during the installation.
* Attach the claws securely.
2. INSTALL FUEL FILTER ASSEMBLY

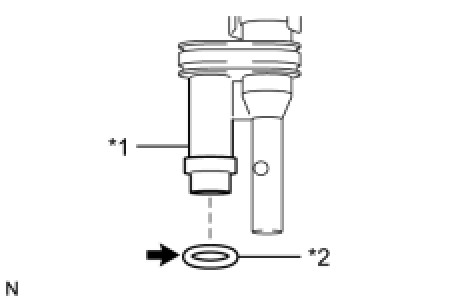

(a) Apply gasoline to a new O-ring and install it to the jet pump.

Text in Illustration:

(b) Install the jet pump to the sub-tank as shown in the illustration.

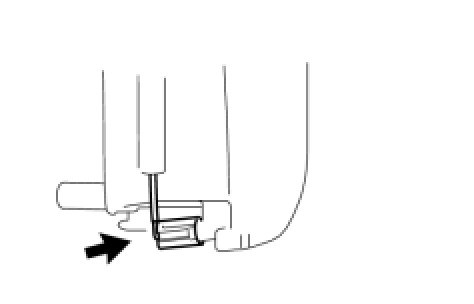

(d) Install the fuel filter to the sub-tank and attach the 2 claws.

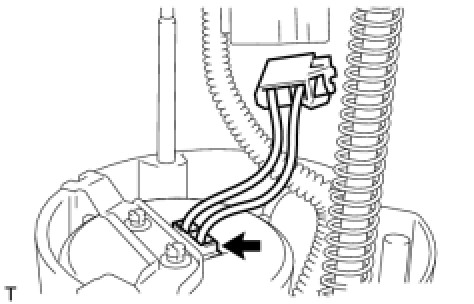

(e) Connect the fuel pump connector to the fuel pump.

3. INSTALL FUEL SUCTION PLATE SUB-ASSEMBLY

(a) Install the spring to the fuel suction plate shaft.

(b) Install the fuel suction plate to the sub-tank.

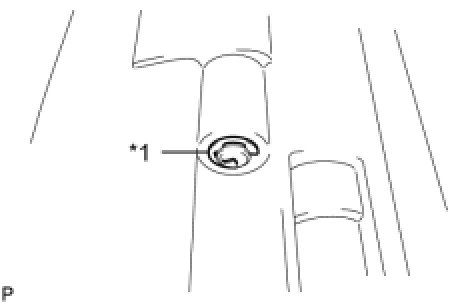

(c) Install a new E-ring.

Text in Illustration:

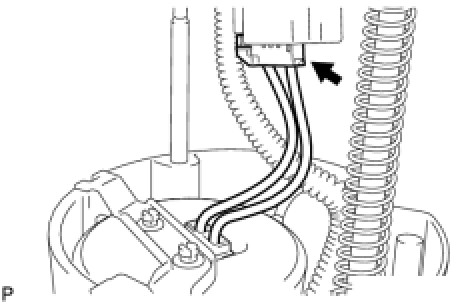

(d) Connect the fuel pump connector to the fuel suction plate.

4. INSTALL FUEL SENDER GAUGE Installation
