Installation

1AR-FE ENGINE CONTROL: ACCELERATOR PEDAL: INSTALLATION

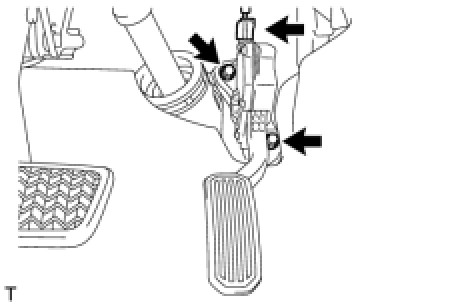

1. INSTALL ACCELERATOR PEDAL SENSOR ASSEMBLY

(a) Install the accelerator pedal sensor assembly with the 2 bolts.





Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

NOTICE:
Avoid physical shocks to the accelerator pedal sensor assembly.

(b) Connect the accelerator pedal sensor assembly connector.
