Home >> Toyota >> 2010 >> Venza AWD L4-2.7L (1AR-FE) >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Locations

Emission Control Systems: Locations

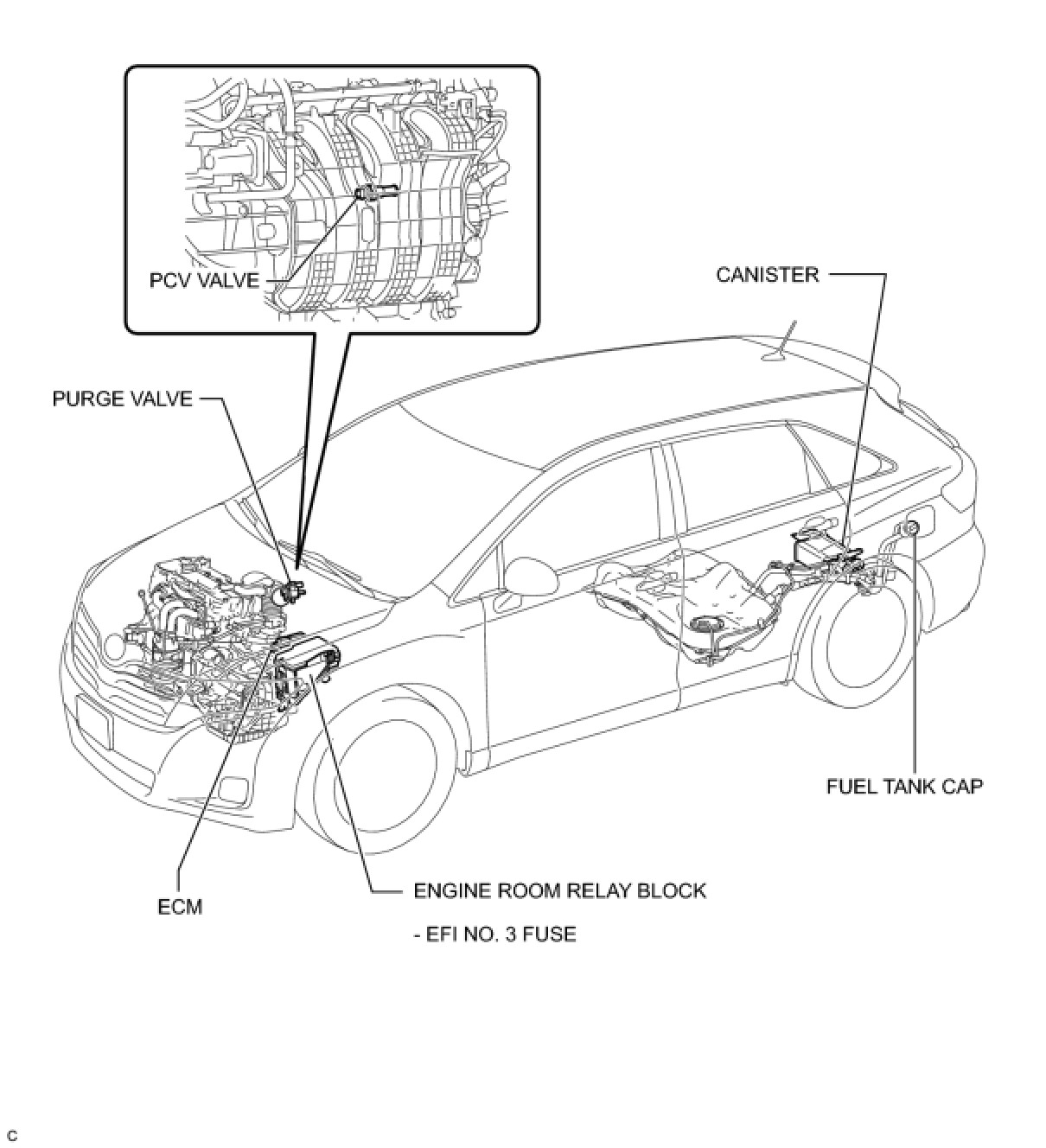

1AR-FE EMISSION CONTROL: EMISSION CONTROL SYSTEM: PARTS LOCATION
