Venza AWD L4-2.7L (1AR-FE)
>>
Repair and Diagnosis
>>
Locations
>>
Ground Locations
>>

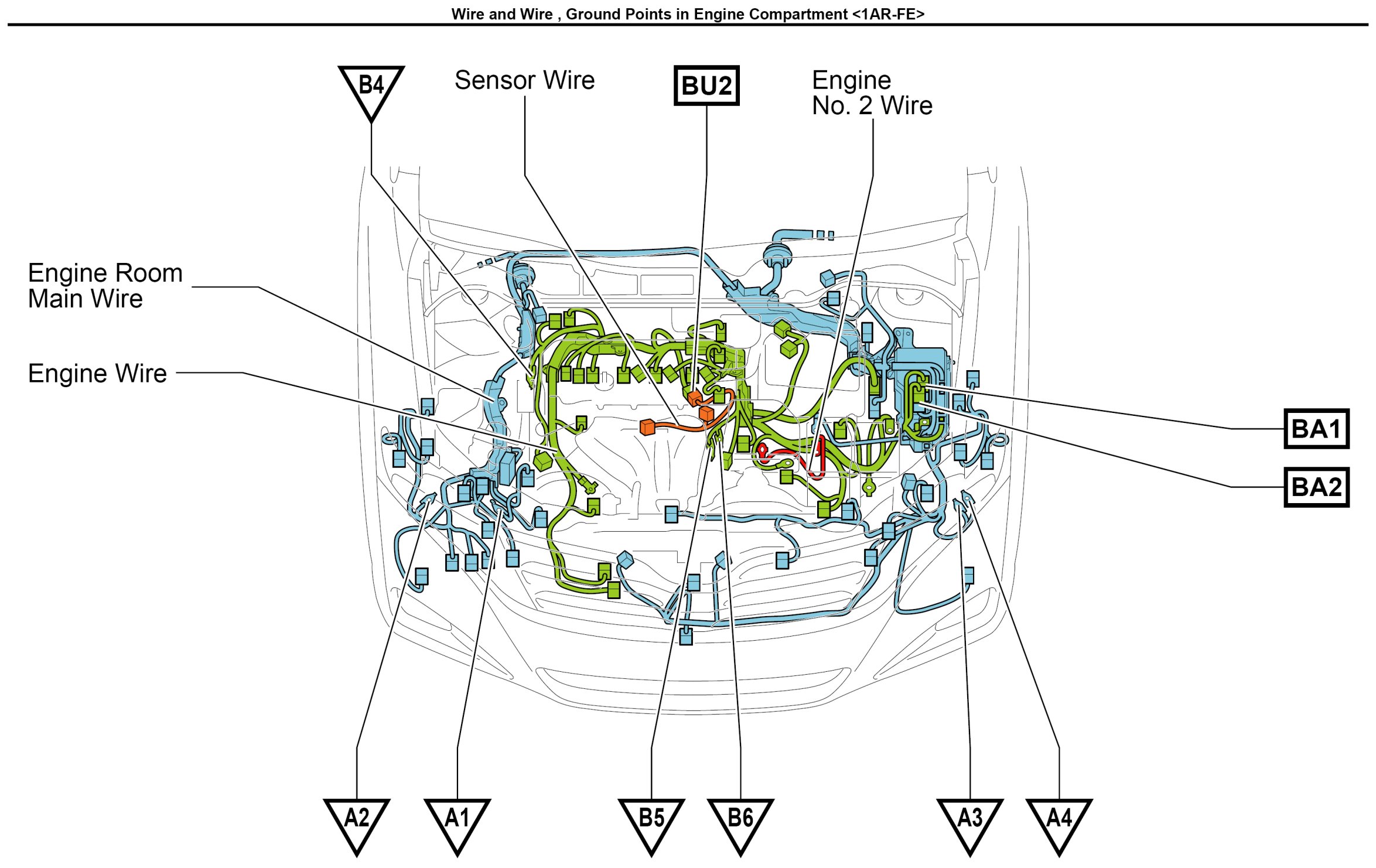

Wire and Wire, Ground Points In Engine Compartment
Wire and Wire, Ground Points In Engine Compartment
A1-B6, BA1-BU2:

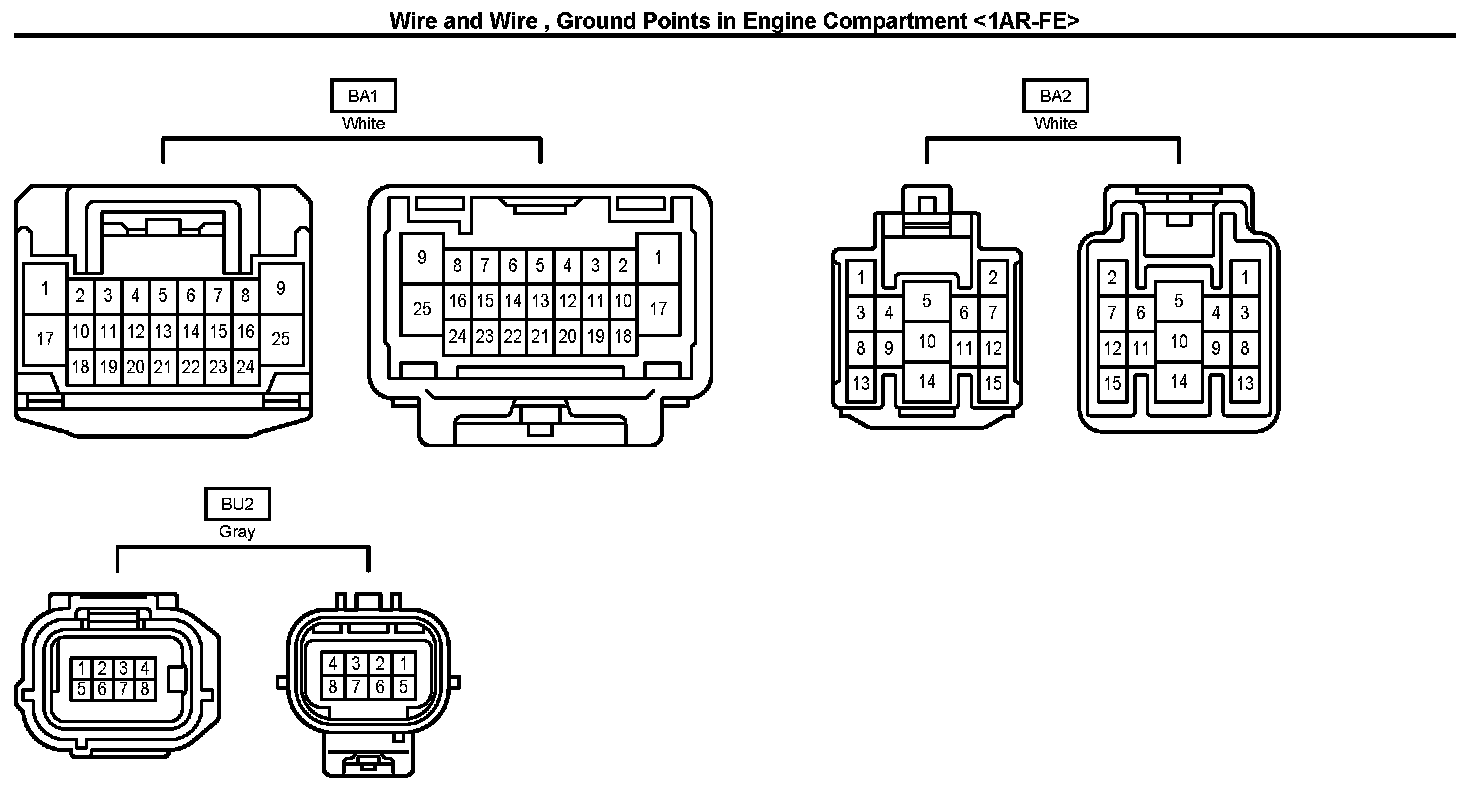

BA1-BU2:
