Disassembly

LIGHTING (EXT): REAR LIGHT ASSEMBLY: DISASSEMBLY

1. REMOVE TAIL LIGHT BULB

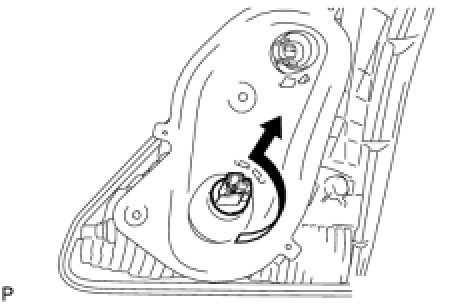

(a) Turn the tail light bulb and the tail light socket in the direction indicated by the arrow shown in the illustration and remove them as a unit.





(b) Remove the tail light bulb from the tail light socket.

2. REMOVE BACK UP LIGHT BULB

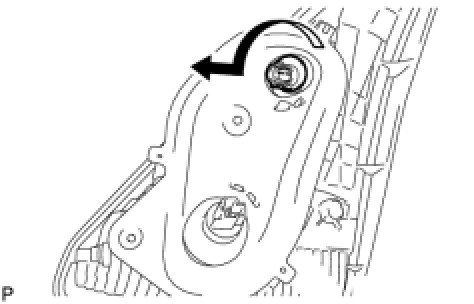

(a) Turn the back up light bulb and the back up light socket in the direction indicated by the arrow shown in the illustration and remove them as a unit.





(b) Remove the back up light bulb from the back up light socket.
