Removal

LIGHTING (EXT): HEADLIGHT LEVELING ECU: REMOVAL

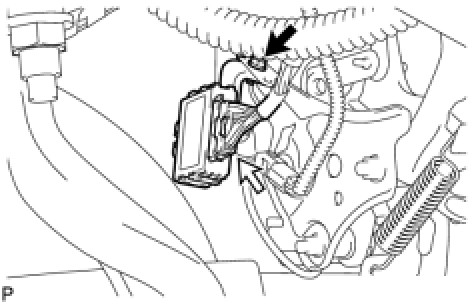

1. REMOVE HEADLIGHT LEVELING ECU ASSEMBLY

(a) Disconnect the connector.

(b) Remove the bolt and headlight leveling ECU assembly.
