Installation

LIGHTING (INT): IGNITION KEY CYLINDER LIGHT: INSTALLATION

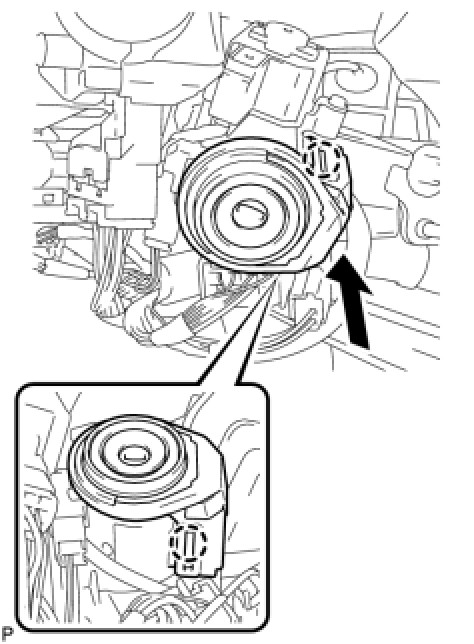

1. INSTALL TRANSPONDER KEY AMPLIFIER

(a) Connect the connector to the transponder key amplifier.





(b) Engage the 2 claws and install the transponder key amplifier.





2. INSTALL UPPER STEERING COLUMN COVER Installation

3. INSTALL LOWER STEERING COLUMN COVER Installation

4. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL Installation

5. INSTALL COWL SIDE TRIM SUB-ASSEMBLY Installation

6. INSTALL FRONT DOOR SCUFF PLATE Installation
