High Pitched Horn

HORN: HIGH PITCHED HORN: INSPECTION

1. INSPECT HIGH PITCHED HORN ASSEMBLY

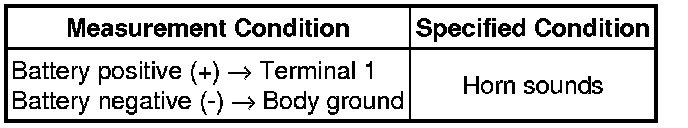

(a) Apply battery voltage and check the operation of the horn according to the table below.





OK:





(b) If the result is not as specified, replace the high pitched horn assembly.
