Interior Lighting System

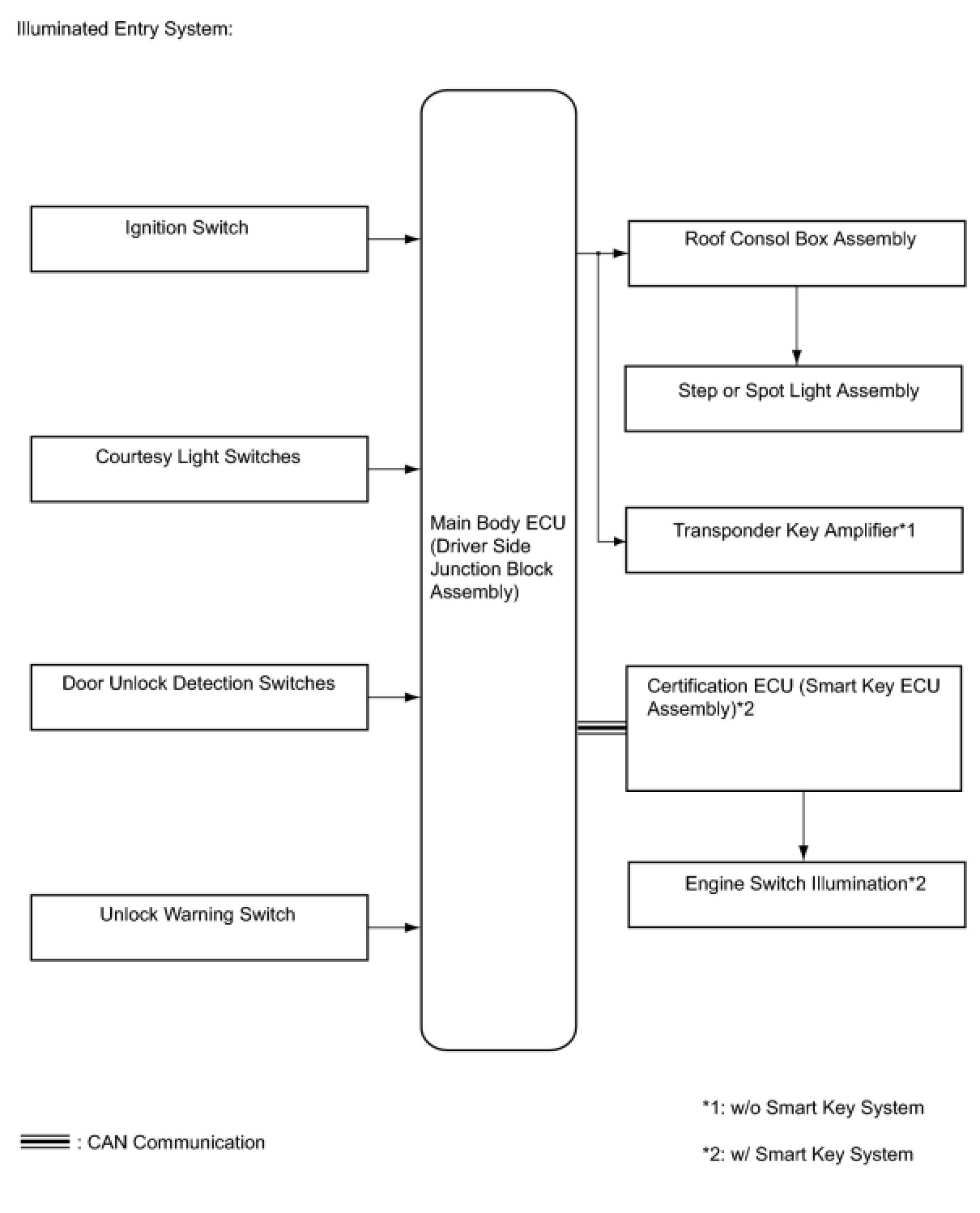

LIGHTING (INT): LIGHTING SYSTEM: SYSTEM DIAGRAM






LIGHTING (INT): LIGHTING SYSTEM: SYSTEM DESCRIPTION

1. ILLUMINATED ENTRY SYSTEM

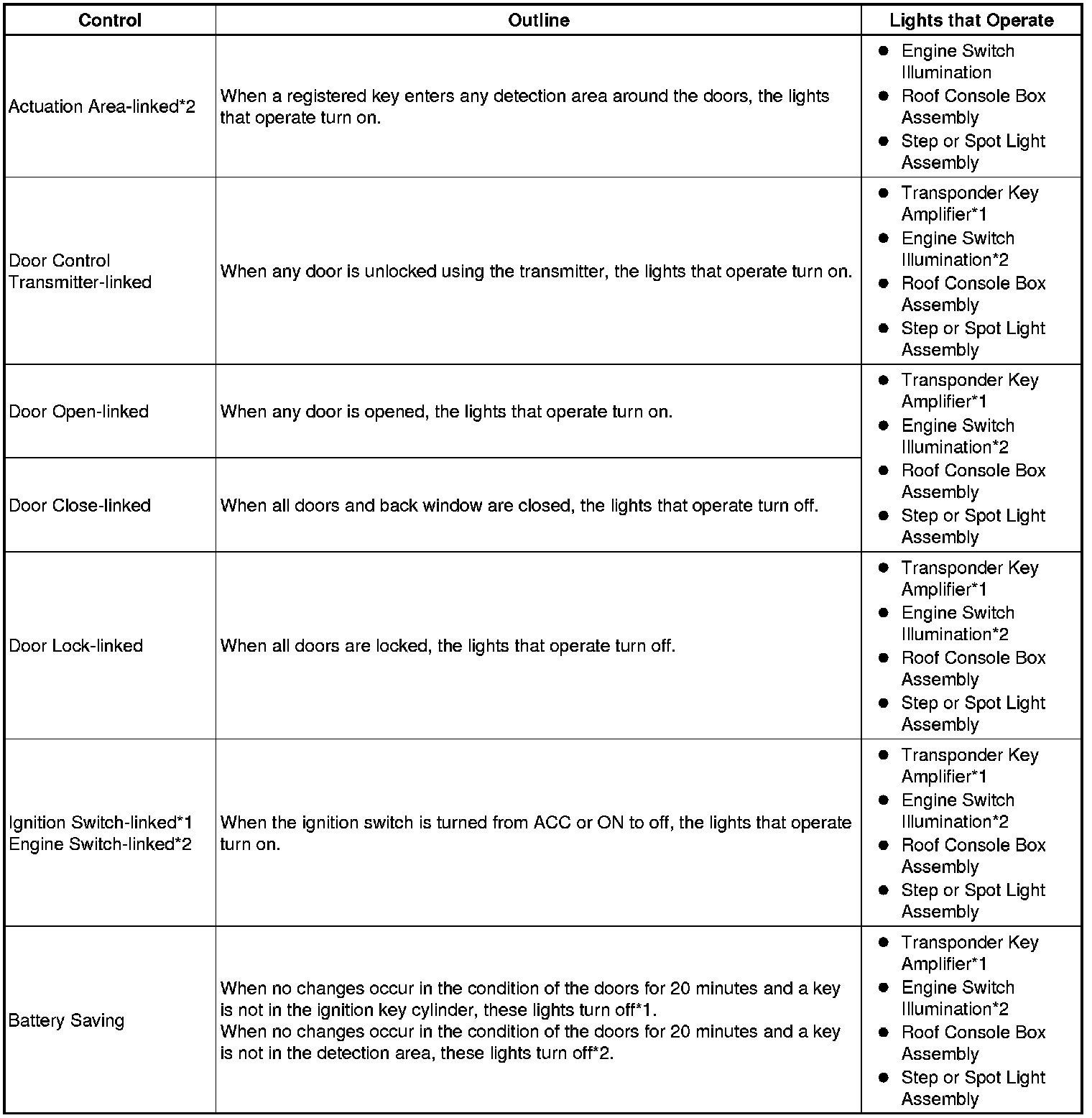

(a) The illuminated entry system has the following control functions:





(b) *1: w/o Smart Key System

*2: w/ Smart Key System
