Installation





LIGHTING (INT): DOOR COURTESY LIGHT: INSTALLATION

1. INSTALL COURTESY LIGHT ASSEMBLY

(a) Connect the connector.

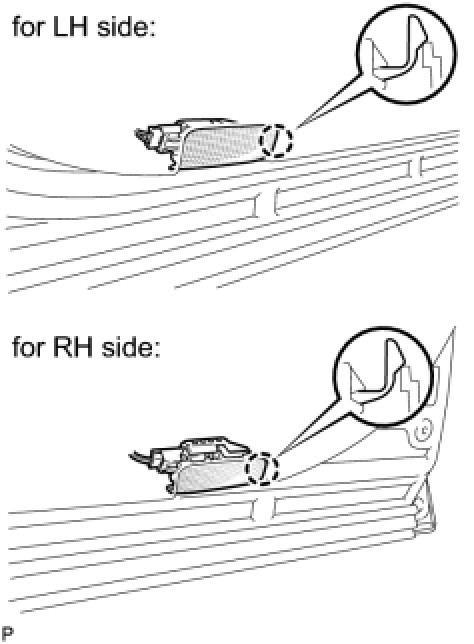

(b) Engage the claw to install the courtesy light assembly.
