Installation

TIRE PRESSURE MONITORING: TIRE PRESSURE WARNING RECEIVER: INSTALLATION

1. INSTALL TIRE PRESSURE WARNING ANTENNA AND RECEIVER

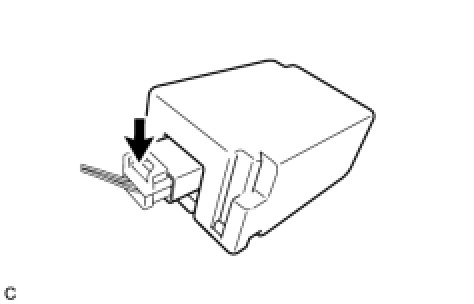

(a) Connect the connector.

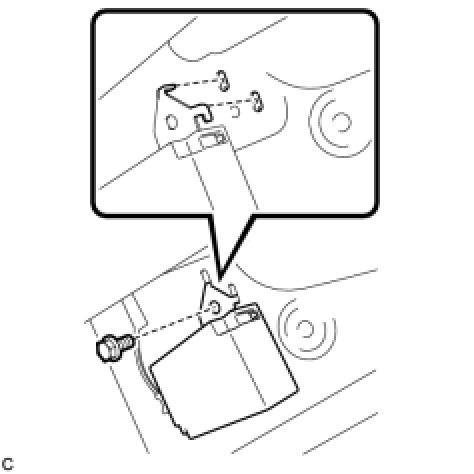

(b) Engage the 2 tabs into the holes as shown in the illustration to install the tire pressure warning antenna and receiver.





(c) Install the bolt.

Torque : 8.5 Nm (87 kgf-cm, 75 in-lbf)

2. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH

HINT
* Refer to the procedures from "Install roof side inner garnish assembly" Installation.
* Installation should be performed only for the left side.
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

4. INSPECT TIRE PRESSURE WARNING SYSTEM

(a) Inspect the tire pressure warning system Test Mode Procedure.
